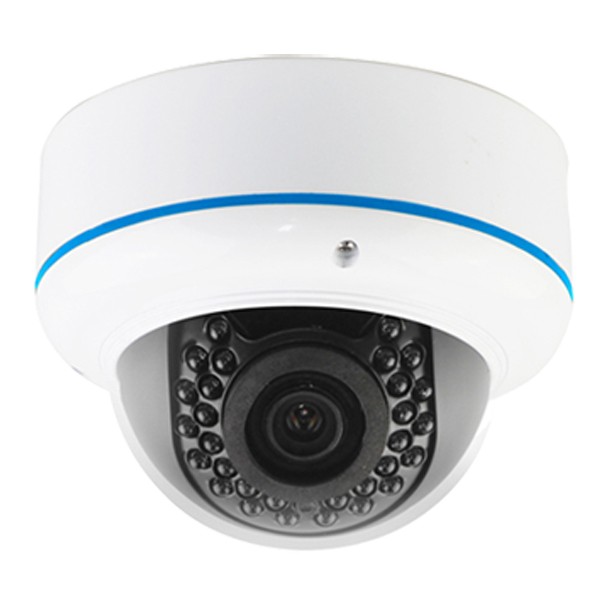

HDCVI Color IR Dome CCTV Camera 2.8-12mm

Customers who bought this product also bought...

1/3" 1.3Mega pixel Color CMOS

HDCVI Color IR Dome CCTV

Camera 2.8-12mm

- High-performance image sensors,with Megapixels resolution

- Up to 500 meters lossless transmission with 75-3 coax

- Support HDCVI HD output

- High efficiency, long-distance, real-time transmission

- Support 3D noise reduction,Super low illumination

- IR cut function ,Day@Night surveillance

- UP to 10 meters IR Distance

- Built-in three-dimensional scaffold,multiple angle adjustable

- Vandalproof Housing

- Waterproof Level : IP66

- Lightning protection

Model	YC-850AHBB62
Model	HDCVI Color IR Dome CCTV Camera
Pickup Device	1/3 1.3Mega pixel Color CMOS（P03100K)
Pixels	1280(H)X960(V)
Min.illumination	0.01Lux/F=1.2(0Lux IR ON)
White Balance	Auto
S/N Ratio	>50dB (AGC Off )
Electronic Shutter	AUTO/ 4/25-1/45,000sec
Day & Night	ICR switch
Operating Temp.	-20C ~ 50C
Sync. System	Internal Sync
Video Frame Rate	1280*X720@50 fps / 1280X720@60 fps
Video Output	Compliant HDCVI Standard
HDCVI distance	Up to 500 meters lossless transmission with 75-3 coax
Infrared Lamp	15pcs Ø5 / 850nm Infrared Lamp
IR Distance	5-10m
Power Supply	DC12V ±10%
Power Consumption	70mA/170mA（IR ON）
Lens	3.6mm/6mm M12 Fixed lens , 2.8-12mm Manual Focus Lens
Dimensions	Ø 102 X 83mm
