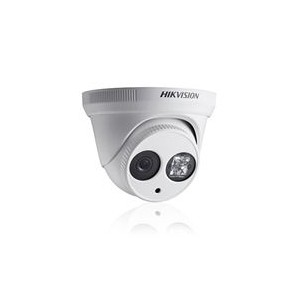

HIKVISION Turbo HD1080P EXIR Dome Camera 3.6mm

Image Sensor:

1/3" Progressive Scan CMOS

Signal System:

PAL/NTSC

Effective Pixels:

1920(H)*1080(V)

Min. Illumination:

0.01 Lux @(F1.2,AGC ON), 0 Lux with IR

Shutter Time:

1/25(1/30) s to 1/50,000 s

Lens:

3.6mm (2.8mm, 6mm, 8mm, 12mm, 16mm optional)
Angle of View: 80.9°(3.6mm), 103.5°(2.8mm),

54.3°(6mm), 38°(8mm), 24.3°(12mm), 18.9°(16mm)

Lens Mount:

M12

Adjustment Range:

Pan: 0 - 360°, Tilt: 0 - 90°, Rotation: 0 - 360°

Day& Night:

IR cut filter with auto switch

Wide Dynamic Range:

120dB

Video Frame Rate:

1080p@25fps/1080p@30fps

HD Video Output:

1 Analog HD output

Synchronization:

Internal Synchronization

Video Output:

1Vp-p Composite Output (75Ω/BNC)

S/N Ratio:

More than 52dB

Up the Coax:

Support

Camera ID:

On/off (15 characters, position programmable)

D/N Mode:

Color/ BW/ EXT

Auto White Balance:

ATW/ AWC-SET/ Indoor/ Outdoor/ Manual

Private Mask:

On/Off, maximum 8 zones

Motion Detection:

On/Off, maximum 4 zones

BLC:

On/Off

AGC:

Support

Anti-flicker:

On/ Off

Language:

English/ Japanese/ CHN1/ CHN2/ Korean/ German/

French/ Italian/ Spanish/ Polish/ Russian/ Portuguese/

Dutch/ Turkish/ Hebrew/ Arabic

Scene:

Indoor, Outdoor, Indoor1, LOW-LIGHT

Function:

Eclipse, Digital noise reduction, Digital zoom(62x),

Slow shutter, Mirror, Defog, Defect pixel correction,

SMART D-ZOOM

Operating Conditions:

-30 °C ~ 60 °C (-22 °F ~ 140 °F)
Humidity 90% or less (non-condensing)

Power Supply:

12 V DC±10%

Power Consumption:

Max. 5W

Weather Proof:

IP66

IR Range:

Up to 40m

Dimension:

Ø114.6 × 89.1mm(Ø4.5” × 3.5”)

Weight:

300 g (0.66 lb)
