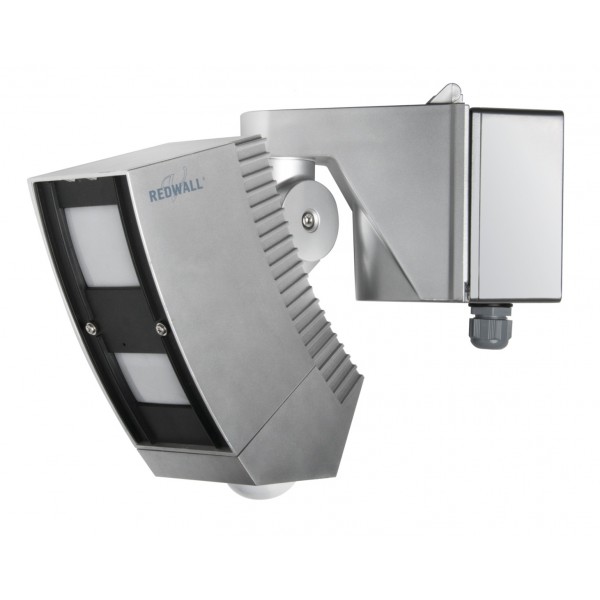

REDWALL SIP-4010/5 PIR

REDWALL SIP-4010/5 PIR

Description

Outdoor PIR detector with creep zone, 40mx10m coverage (main area), 6mx9m coverage (creep

zone), designed to trigger video transmission systems and PTZ camera control.Our detectors

with creep zone provide two independant detection areas in one device. To learn more about our

range of "2 in 1" detectors, click here.

Features

40mx10m detection coverage

-2 in one detectors with an independant creep zone sensor unit to cover the area between the

detector and the buidlingintelligent PIR detection systemautomatic sensitivity management to

ambient temperature and light advanced detection algorithmthree dual pyro-elements with patented Double Conductive Shield

-inganti-vandalism functions including anti-masking and anti-rotation function

with 3-axis accelerometer

-2.3m to 4m mounting height

-independant sensitivity for creep/ near and far detection zones

-detection logic selector

-detection range selector

-independant N.C. and N.O. outputs

-adjustable alarm interval time

-BS8418 compliant (UK)

Datablad = Download
