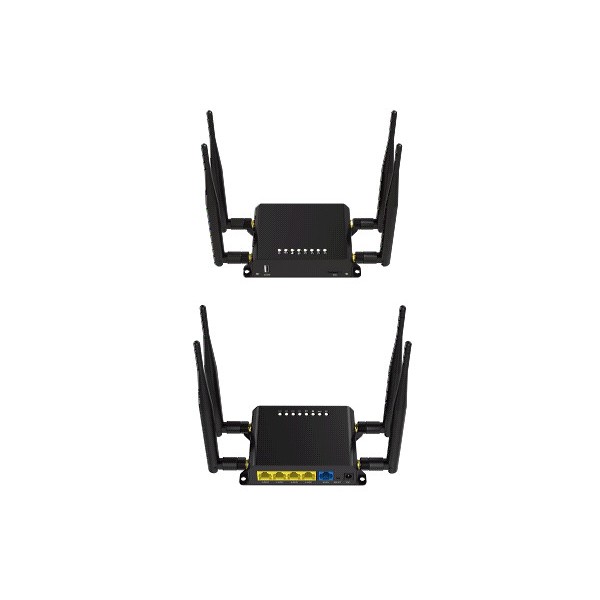

4G Atheros chipset open WRT Wireless Router

3 andre varer i samme kategori:

4G Atheros chipset open

WRT Wireless Router

Simply Description

The OEM-826-Q uses the latest wireless solution, performance is better and

more functions. Stablewireless signal, stronger scalability, the Max transmission

rate can up to 1200Mbps (the 11ac PCIEmode is necessary). 2.4GHz up to

300Mbps, support 3G,4G (3G,4G PCIE module is necessary), itcould also

dial-up via the USB port (should mount the 3G,4G network card and also need

youhave your own firmware to support that), also support watchdog feature.

Provide 1 USB 2.0interface, 1 Micro SD slot .

Product Feature

 Support 802.11n/802.11g/802.11b network protocol, support 802.3/802.11u protocol, 5*10/100Mbps Auto MDI/MDIX

 1 USB 2.0 interface

 1 Micro SD Card Slot

 Support 3G/4G and 11ac

 Support watchdog feature

 Many kinds of way to protect your data transmission

Product Specification

Hardware
Main Chipset	QCA 9531 chipset
RAM	DDR2 128MB
SPI FLASH	16MB
Protocol	IEEE 802.11n, IEEE 802.11g, IEEE 802.11b, IEEE802.11ac, IEEE802.11a IEEE 802.3, IEEE 802.3u
RT Power	802.11b 18dBm±2dBm; 802.11g 15dBm±2dBm; 802.11n 15dBm±2dBm;
Reception Sensitivity	802.11b: -83dBm@10% PER 802.11g: -74dBm@10% PER 802.11n: -68dBm@10% PER
Work Channel	2.4GHz choose : 1-13
Wireless Rate	Max 300Mbps
Work Frequency	2.4GHz
Antenna	4 removable antenna (With 3G or 4G module)
Interface	1 PCI-E slot 1 SIM card slot 1 USB 2.0 port 1 Micro SD card slot 110/100M WAN port (Auto MDI/MDIX) 4 10/100M LAN port (Auto MDI/MDIX)
LED	Power,PCIE module ,2.4G,WAN,LAN1,LAN2,LAN3,LAN4
Button	Reset/WPS
Max Power consumption	<12W
Dimension (LWH)	1418526MM
Software
WAN Type	PPPoE^ Dynamic IP, Static IP
Work Mode	AP; Router;
DHCP	Server, Client, DHCP Client List, Address Reservation
Port Forwarding	Virtual Server, Port Triggering, UPnP, DMZ
Firewall Security	Dos, SPI Firewall IP Address Filter/MAC Address Filter/ Domain Filter IP and MAC Address Binding
DDNS	Support
VPN	PPTP, L2TP, IPSec (ESP Head)
