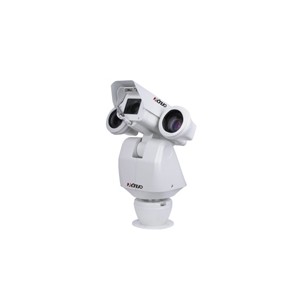

XT-SH03-L

Print
Maximize

5 andre varer i samme kategori:

Mere info

Features

* High strength double deck aluminum alloy meticulous casting case with strong capability to endure abominable temperature & anti-corrosion,waterproof class IP66.

* Low power consumption,long cycle life,laser night vision can be up to 500m.

* All weather conditions supported(Night;Abominable weather;Long distance;Large scope;)

* Pan range:360°continuously, Tilt range:-90° to +90°.

* Integrated multi-protocol decoder;Baud rate selectable;Multi-cameras compatible.

* OSD menu supported.

* Total 3 pattern scans with each scan records 200 seconds.

* Real time angel display.,High accuracy of preset positions

* 128 preset positions with patron

preset title can be displayed.

* 6 programmable patrols,3 auto pan and 16 privacy mask zonel Built-in surge and lightning

strike protection and data power-off memory.

* Alarm linkage function(Selectable)

Camera Specification

Model	XT-SH03-L
Image sensor	1/4 Exview HAD CCD
Active pixels	752H×582V
Synchronization	Internal/External
Video output	1.0Vp-p/75Ω
White Balance	Auto/Manual
Scanning frequency	15.625kHz 50Hz
Horizontal Resolution	480TVL
S/N Ratio	≥50dB
Electronic shutter	1/1～1/10,000s, 1/3～1/10,000s
Min. illumination	0.01Lux
Focal length	f = 4.1～73.8mm 18 x	f = 3.6～91mm 26 x	f = 3.4～122.4mm 36 x
Zoom	Total 216x Optical 18x Digital 12x	Total 312x Optical 26x Digital 12x	Total 432x Optical 36x Digital 12x
Focal & Iris	Auto/Manual

Mechanism Parameter

Pan preset speed	80°/s
Tilt Preset speed	60°/s
Pan speed	0°/s～80°/s
Tilt Speed	0°～60°/s
Pan range	360° Continuously
Tilt range	-60°～+60°
Preset/cruising tracks	128 presets/6 cruising tracks
Communication	Multi-protocol,Baud Rate from 2400bps to 19200bps for optional,RS485 control
Relative humidity	90%RH without agglomeration
IP grade	IP66
Work temperature	-30℃ ～ 55℃
Power Supply	AC24V
shock	≥4G
Weight	7kg
