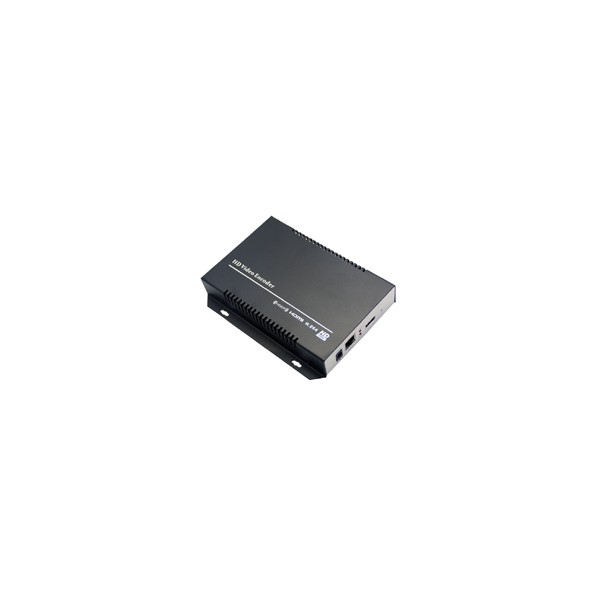

HD Video Encoder MV-E1002

2 andre varer i samme kategori:

HD Video Encoder

MV-E1002

Mine Tech HD video Encoder (HDMI input) is our newest professional HD audio & video encoding

device with powerful functionality. It supports H.264 encoding, dual Streaming data.

It is equipped with 1 HDMI channels input supporting MPEG4 AVC/H.264 High Profile code format

& main Profile code format.

Its high integration and costeffective design make this device widely used in variety of digital

distribution systems such as CATV digital head-end.

Satellite and terrestrial digital TV etc., also it supports VLC decode.

Type	Video & TV Tuner Cards
Brand Name	Mine Tech
Package	Yes
Model Number	Mine Tech HD video Encoder
Input	1080p@60Hz Fps HDMI
Output	RJ45 Ethernet
Applications	1. IPTV 2. Digital Signal 3. Video Conference 4. Replace HD Video Capture Card 5. Hotel TV system 6. Live Broadcast 7. Teaching/Campus Broadcast 8. Recording System 9. NVR(Net Video Recorder)

Video
Input	1x HDMI( 1.3a) HDCP
Resolution	1920x1080P/1080i/720P @50/60Hz
Encoding	H.264/AVC High Profile Level 4.0
Data Rate	0.8Mbps~12Mbps
Rate Control	CBR/VBR
GOP Structure	IBBP
Advanced Pretreatment	De-interlacing, Noise Reduction, Sharpening
Audio
Encoding	AAC
Sampling rate	Auto
Bit-rate	32K/48K/64K/96K/128K/160K/192K
Sampling precision	24 bit
Data Rate	64Kb/s~384Kb/s
System
Ethernet	1000 Base-T Ethernet interface
Protocol	HTTP UDP unicast / multicast;RTSP;RTMP
Control Interface	WEB
Others
Dimension (W× L× H)	17013030mm
Weight	0.5kg
Temperature	0-45(work),-20-80(storage)
Power	12V/DC
Consumption	6W
