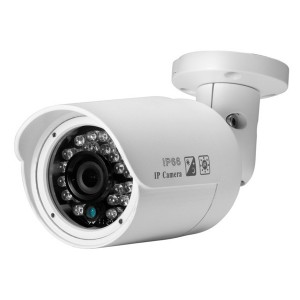

1.3MP AHD Color IR Mini Bullet CCTV Camera 6mm

KUN 4 stk.

1.3MP AHD Color IR Mini Bullet CCTV Camera 6mm

YC-881AHZ37

- 1/3" Mega pixel Color CMOS(IMX238)

- Resolution : 1312(H)×1069(V) 1.4Mega Pixels

- Min.illumination : 0Lux/F1.2(IR ON)

- UP to 20 meters IR Distance

- IR cut function ,Day@Night surveillance

- Non coding compression ,High efficiency, without delay real-time transmission

- Up to 500 meters lossless transmission with 75-3 coax

- Compatible with normal D1/960H

- Support 2D noise reduction,Lightning protection, anti-fog function

- Metal housing ,Inner line bracket ,multiple angle adjustable

- Waterproof Level : IP66

Model	YC-881AHZ37
Model	1.3MP AHD Color IR Mini Bullet CCTV Camera
Pickup Device	1/3" Mega pixel Color CMOS (IMX238)
Resolution	AHD 720P / CVBS 800 TVL
System	PAL/NTSC
Total pixels	1312(H)×1069(V) 1.4Mega Pixels
Effective Pixels	1280(H)×1024(V) 1.3Mega Pixels
Min.illumination	Color:0.02Lux(F1.2,50IRE,AGC ON), Black and White:0.0008Lux(F1.2,50IRE,AGC ON)
Electronic Shutter	PAL ：1/50 ～ 1/100,000s NTSC：1/60 ～ 1/100,000s
WDR	Digital WDR
Frame accumulation	0-30X
2D-DNR	Off / Low / Middle / High
Image Freeze	Support
BLC/HLC	Support
Anti-fog	0-2 grade
S/N Ratio	>60dB (AGC Off )
White Balance	Auto White Balance
Day & Night	ICR switch
Mirroring	Horizontal mirror / vertical mirror
Privacy Mask	Support
Language	Chinese / English / German / French / Italian / Spanish / Portuguese / Russian / Dutch / Turkish / Poland
OSD	Support
Video Output	1.0Vp-p composite output, 75Ω
Power Supply	DC12V ±10%
Infrared Lamp	24pcs Ø5/850nm Infrared Lamp
IR Distance	15-20m
Power Consumption	60mA/220mA（IR ON）
Lens	6mm Fixed M12 Lens
Size	1726562mm
Weight	0.48KG
Operating Temp.	-20C ~ 60C
Humidity	Relative humidity below 90%
