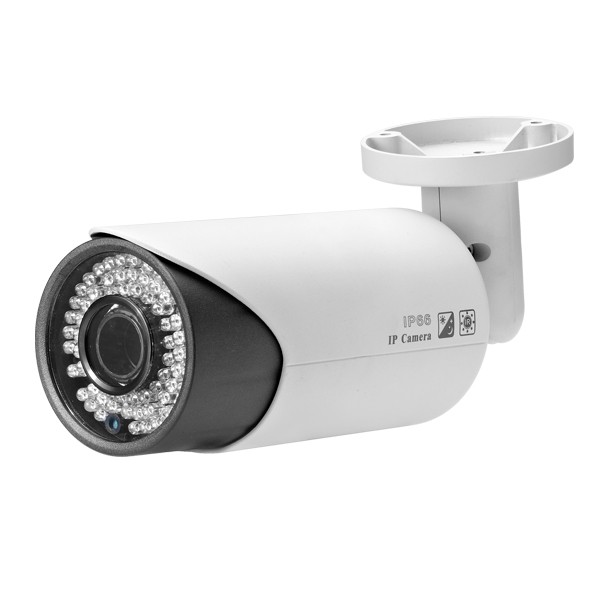

5.0 megapixel HD network varifocal waterproof IR CCTV camera...

Model

YC-W932AHZ80

Product Name

5.0megapixel HD network varifocal waterproof IR CCTV camera

 System

EmbededRTOS design,dicaryon 32 bit DSP(TI Davinci DM368)

,compression,watchdog ,,32M FLASH,128M DDR2

 Pickup Device

5 megapixel 1/2.5''CMOS senor(9P0160)

 Pixel

1920(H)×1080(V)

 Video Code

 H.264 video Code,support Dual-stream,

AVI;Support stream 0.1M-6Mpbs adjustable

 Video compression bit rate

 5megapixel 10 frames(real time),3.0Megapixel 17 frames

,below 2.0Megapixel 25frames,

Support 1-25 frames/second adjustable

Dual stream

Main stream:2592×1920,2048×1536,1920×1080,

1600×1200,1280x1024,1280×960,1024×768,

1280×720;:Sub streams:960*540,640×360,480×270,352×288,

320×240,352×192,320×192,288×192,256×192,5.0Megapixel:no stream

Minimum Illumination

color :0.6Lux@F1.2, black and white 0.08 Lux@F1.2(IR ON )

 AGC

 Auto

 White Balance

 Auto

 Day-night Switch

 Support day-night switch,support photoresistance signal linkage

 Network Port

 RTSP/FTP/PPPOE/DHCP/DDNS/NTP/UPnP/ONVIF ;

 Data storage

videotype storage,screenshot picture storage

 Storage Method

manual,auto(Timing video, move to alarm video)

 Analog Output

 One analog video ouput;support CVBS Standard,PAL/NTSC optional

POE

POE

Operating Temperature

-10C - +55C

IR LEDS

78XØ5 IR Leds

IR Distance

65m

Power Supply

DC12V ±10%

Power Consumption

180mA/630mA (IR on)

Lens

2.8-12mm varifocal lens

Size

295x87x87mm

Weight

0.93KG
