1/3" SONY 960H CCD 700TVL License Plate Recognition Camera

29 andre varer i samme kategori:

1/3" SONY 960H CCD 700TVL License Plate Recognition Camera 9~22mm BN-CW20CW/H2

Specifications:

License plate recognition camera

1.2.8-12/9~22mm AI lens

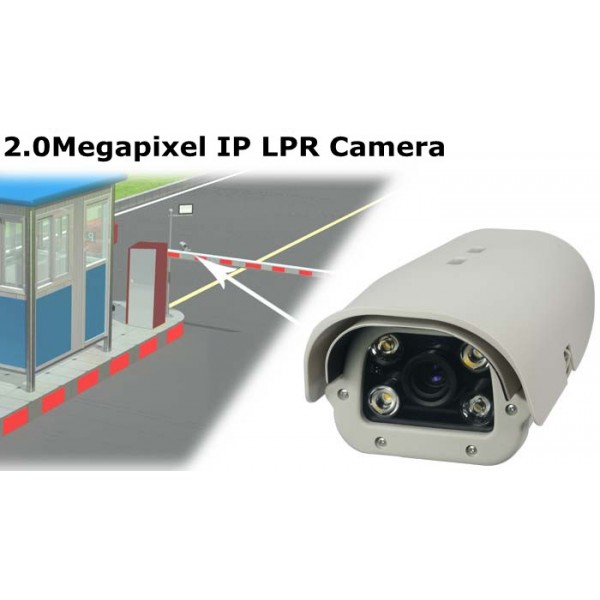

2.suitable for entrance,parking lot

3.short distance

4.700TVL

License plate capture camera

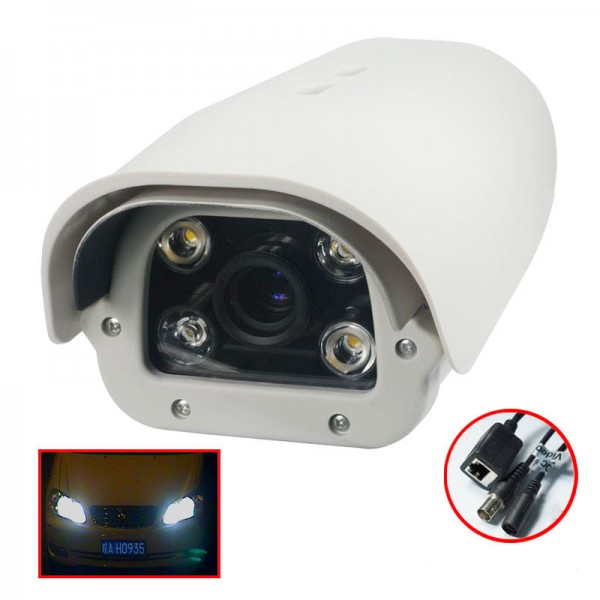

Analog 1/3"SONY 960H CCD 700TVL License Plate Recognition Camera

With 4 Warm Yellow Dot-Matrix LEDs RS-485 Short Distance 9~22mm

● High light suppression can adjust the light of whole image, especially when the headlights are too bright.

● Using warm yellow LEDs much better will not lead over exposure.

● LED brightness and CDS start time can be adjusted according to different ambient lignt

and different installation enviornments.

● LED brightness can be controlled via local cable joystick or via RS485 remotely .

● Remote RS485 control from client software are very convenient for construction and installation.

● Capture plate number distance: up to 20 meters

● Builts in vehicle actuated control technology, can connect with induction coil.

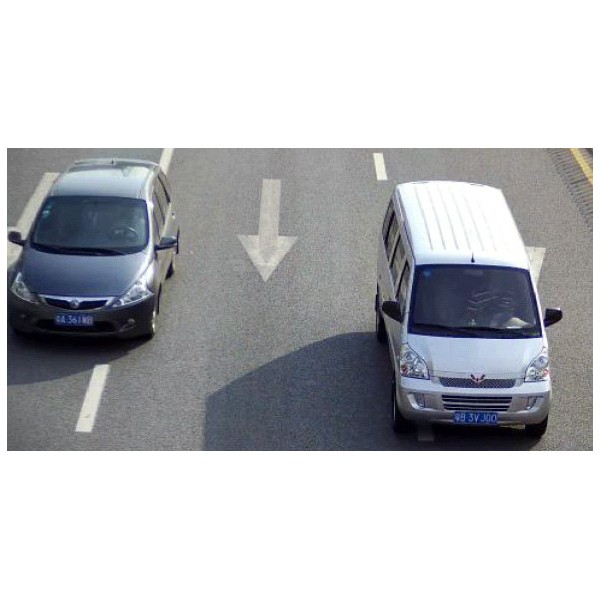

Advantages: When cars coming, the license plates will be monitored, viewing the environment

after vehicle pass by.

● Six kinds of modes selection with easy operation.

● Dimension: 420x147x101mm

Product name	High Resolution LPR Camera series
Video system	PAL/NTSC
Sensor	1/3” SONY 960H Exview HAD II CCD
Pixel	PAL:976(H)x 582(V) / NTSC:976(H)x 494(V)
Resolution	Color:650TVL B/W: 700TVL
Video output	1.0Vp-p/75Ω Video composite video signal
Capture mode	Modes 1-6 selectable, display in the monitor
Addition function (Ground sensor model)	LPR function when the car is in, normally monitor when the car pass away, ground sensor model
LED	4pcs whiter Array leds
Lens	6-22mm DC lens default, 2.8-12/5-50 optional
Day/night	IR LED , B/W image and ICR auto switching for IR model
Power Supply	DC12V (±10%), 1A at DC12V(Max)
Work environment	-30degree~70 degree, 20%~90% RH
Temperature control	Heater works at –5degree (optional), fan works at 45 degree

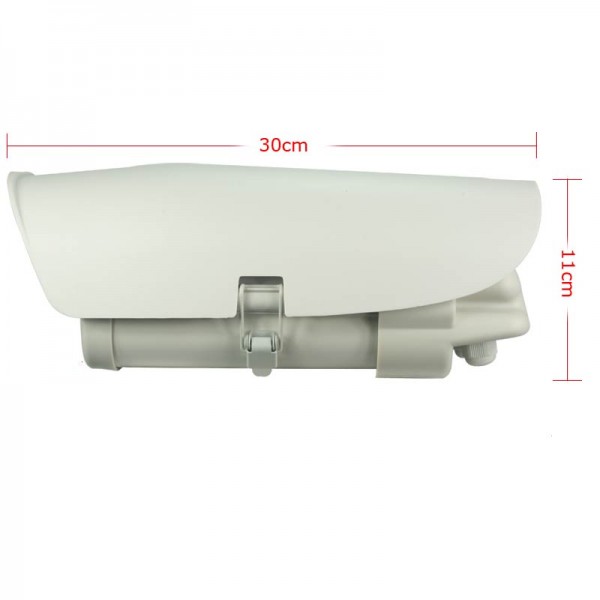

Dimension	290x147x101(mm)
