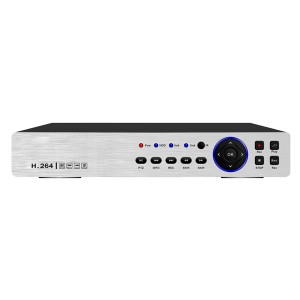

1080P H.264 16CH AHD DVR IP/Analog/AHD Camera Hybrid Standalone

Model

L-AVR1216A

System

Main Processor

Operating System

Embedded LINUX

Video

Multi Input

16 channel

Video Standard

AHD

16*AHDM / 16*AHDL Camera

Analog

16* 960H Camera

IP

4*1080P / 1*1080P + 8*720P IP Camera

AHD+IP

4*AHDM + 4*720P IP Camera

Audio

Input

4 RCA

Output

1 RCA

Two-way Talk

Support

Alarm

Input

4 CH

Output

1 CH

Display

Interface

1 HDMI,1 VGA

Resolution

1920×1080, 1280×1024, 1280×720, 1024×768, 800×600

Display Split

1/4/8/9/16

Privacy Masking

4 rectangular zones (each camera)

OSD

Camera title, Time, Video loss, Motion detection, Recording

Recording

Video/Audio Compression

H.264/G.711

Resolution

1080P(1920×1080)/720P(1280×720)/960H(960×576/960×480)/

D1/4CIF(704×576/704×480)/CIF(352×288/352×240)/

QCIF(176×144/176×120)

Record Rate

Main Stream

1080P/720P/960H/D1/HD1/2CIF/CIF(1~25/30fps)

Extra Stream

CIF/QCIF(1~25/30fps)

Bit Rate

48~6144Kbps

Record Mode

Manual, Schedule(Regular(Continuous), MD), Stop

Record Interval

1~120 min (default: 60 min), Pre-record: 1~10 sec

Video Detection & Alarm

Trigger Events

Recording, PTZ, Tour, Email, FTP, Buzzer & Screen tips

Video Detection

Motion Detection, MD Zones: 396(22×18), Video Loss

Playback & Backup

Sync Playback

1/4

Search Mode

Time/Date, MD & Exact search (accurate to second)

Playback Functions

Play, Pause, Stop, Rewind, Fast play, Slow play, Next file,

Previous file, Next camera, Previous camera, Full screen,

Repeat, Shuffle, Backup selection, Digital zoom

Backup Mode

USB Device/ Network

Network

Ethernet

RJ-45 port (10/100M)

Network Functions

HTTP, TCP/IP, UPNP, RTSP, UDP, SMTP, NTP, DHCP,

DNS, PPPOE, DDNS, FTP, IP Filter

Max. User Access

20 users

Smart Phone

iPhone, iPad, Android, Windows Phone

Storage

Internal HDD

2 SATA ports, up to 8TB

Auxiliary Interface

USB Interface

2 USB2.0

RS485

1 port RS485 for PTZ control

General

Power Supply

DC 12V/4A

Power Consumption

<10W(without HDD)

Working Environment

-10°C ~+55°C / 10%~90%RH / 86~106kpa

Dimension(W×D×H)

1U, 325mm×255mm×60mm
