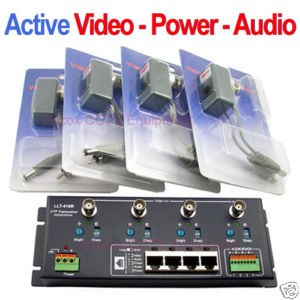

4pcs KDM-6566DA,1pcKDM-6567AR,video and

Power transfer, max.1200m

Specs

4 Channel Active Power-Video-Data/Audio PVD Receiver +
Power-Video-Data/Audio Transceiver x 4pcs

Video

Frequency respond：DC-6MHz
Common-ode/differential-mode rejection：15HKz-6MHz 60dB type

Video In/Out

RJ45 x 4 + BNC (Female) x 4

Video Format

NTSC/PAL/CCIR/SECAM

Power Input

DC 12V

Audio/Data

Yes

Transmission Distance

Max. 1200M (BW)

Surge Suppression

6000V 1.2μ S*5μ S

Impedance

Coaxial cable BNC Male: 75Ω
UTP RJ45 Data Connector: 100Ω

Wire Type

Specification: 24AWG or UTP CAT5
Impedance: 100Ω±20%
DC loop resistance: 18Ω/100M
Difference Capacitance: 62pf/M（MAX.)

Control

Brightness and Sharpness

UTP Port

RJ45 and Terminal Block

Power Consumption

12V

Dimensions (mm)

200 x 70 x 38

Weight (g)

480

Environmental

Temperature Operating: -10℃ to +70℃
Storage: -30℃ to +70℃
Humidity: 0 to 95%
