1 Channel Active CCTV UTP Video Transmitter w Receiver

1 Channel Active CCTV UTP Video Transmitter w Receiver

Please note that we are selling factory direct products. All our products are 100% brand new without retail packaging.

Description:

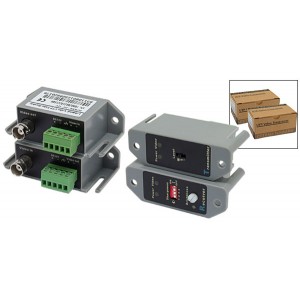

The kit containing a single channel transmitter and a single channel receiver.
Three position range switch for gain select on transmitter.
Four position distance range switch on receiver.
CCTV Video Transmitter Receiver with built-in transient protection and ground lifting.
The farthest transmission distance will be 1500m if it is used with passive transceiver, and the fasthest transmission distance can reach 2400m if it is used with active transmitter.
Active UTP Video Transmitter Receiver with built-in transient suppression protection.


Technical Specification:

Frequency Response:

DC-8MHz
CMRR (Common Mode Rejection Ratio): 60dB
Impedance: BNC terminal : 75O, connection terminal: 100O
Working Temperature: -10°C - 70°C
Storage Temperature: -30°C - 70°C
Applicable to NTSC, PAL, SECAM and CCIR systems
Power Supply: DC 12V (Max:50mA)
Casing Material: Plastic
Dimension (Each One): ~7.4(L) x 4.6(W) x 2.5(H)cm
Weight: 165g

Package Included:

1 x UTP Video Transmitter with 2 Screws
1 x UTP Video Receiver with 2 Screws
