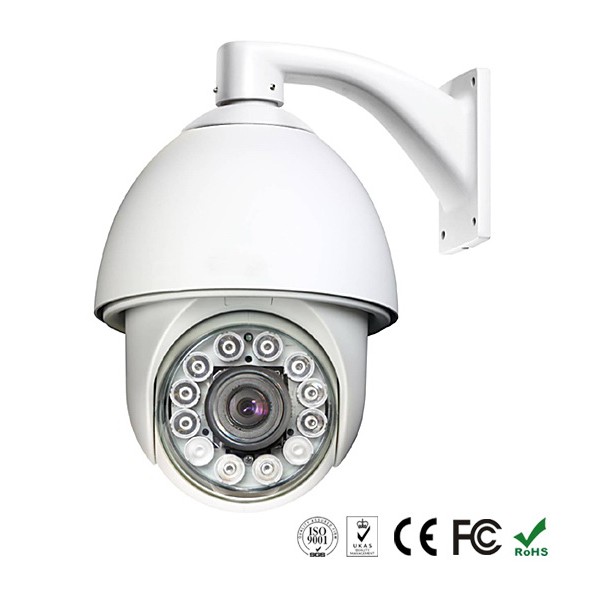

6'' Outdoor Motion Auto Tracking 1/3 Sony CCD 700 TVL

Specifications

Model

DHB6R-XS

Image Sensor

1/3 Sony CCD

Horizontal Resolution

700TVL

PiXSl

976(H)x596(V)

Min.illuminatiion

0LUX(IR LEDs on)

S/N Ratio

≥50dB(AGC OFF)

Backlight compensation

On/off

White balance

Auto

Electronic Shutter

PAL: 1/50-1/10000ses ;

NTSC:1/60-1/12000ses

Foucus length

3.2-86.4mm

Optical Focus

36X

IR View Distance

80-120m

Lens

3.2-86.4mm

House Material

Metal

Bracket

Ceiling or Wall Mount

Weatherproof Standard

IP66

Power/Current

DC12V4A

Video Output

1.0Vp-p Composite output(75Ω/BNC)

Work Temperature

temp: -40°C to 60°C

Package Dimension

300x300x425mm

Weight

5kg

Features & Functions

3D positioning, Video analysis, Video lock, Intelligent hidden thread occlusion,

AB scan,

Communication line detection, power off/cut memory, Guard position,

Proportional variable times,

 timing function, online upgrade, password protection, ptz camera title,

area display, remote re-start,

 compass function, 485 remote soft address etc.

Support IR-Cut

Presets: 256

Patrol track: groups, each can record 500 actions,max10min

Cruise Track: 32 presets can join each cruise, 8 groups

Rotation: Horizontal 360° unlimited rotation, Vertical -10-90°

Communication: RS485, PELCO D and PELCO P

Special Functions: AWB, MASK, DNR, Strong light Optimizer,Mirror, OSD etc

Temperature control built-in

Case Material: Aluminum shell, IP66

2CH Alarm Input, 1CH Alarm Output

Fan Control: Manual/Auto

Focus System: Can auto track the movement,

And automatically focus and zoom

DHB6R-XS Standard Package List

Camera

x1

Camera bracket

x1

User Manual

x1

Power adapter

x1

Box

x1
