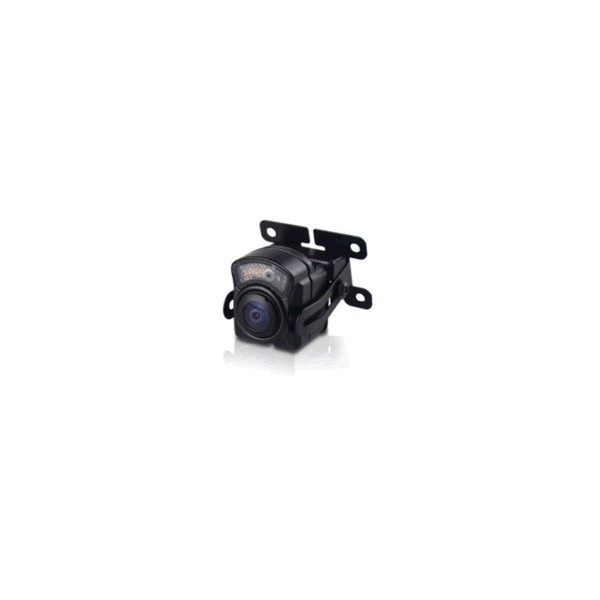

Taxi Camera 700TVL - BNC
+ Audio
This is a HD taxi camera with very small size and customized housing.
Features:
> SONY CCD, 700TVL
> Audio
> Metal housing
> IR night vision 1.5-2 meters
> PAL
> BNC/RCA connector selectable
Small size for easy installation
Specifications:
Item Data
Pick up Device 2090+1/3” Color Sony 811 CCD
TV System PAL
Effective Pixel Array 976H x 582V
Horizontal Resolution 700TVL
Sensitivity 0 Lux (LED On)
Scanning System 2:1 Interlace
Synchronization Internal
Infrared Spectrum 850nm
Infrared LED 5 LEDs with SMD type
IR range 1.5 M
S/N Ratio 50 dB, (AGC Off)
Audio Available
Switchable IR filter No
Auto Gain Control Auto
White Balance Auto
Electronic Shutter
AutoBack Light Compensation Auto
Video Output1 Vp-p, 75Ω
CompositeGamma Ratio 0.45
Lens Waterproof f2.35mm fixed iris Lens Angle (D)145°
Pan Adjusting +/-30 Degree
Tilt Adjusting 0-90 Degree
Power Supply 12V DC ±10%
Power Consumption 130mA
Dimensions 32.2(L) x 42.6(H) x 29.5 (W) mm
Net Weight 51 g
Weatherproof N/A
Operating Temperature -20°C to +50°C
