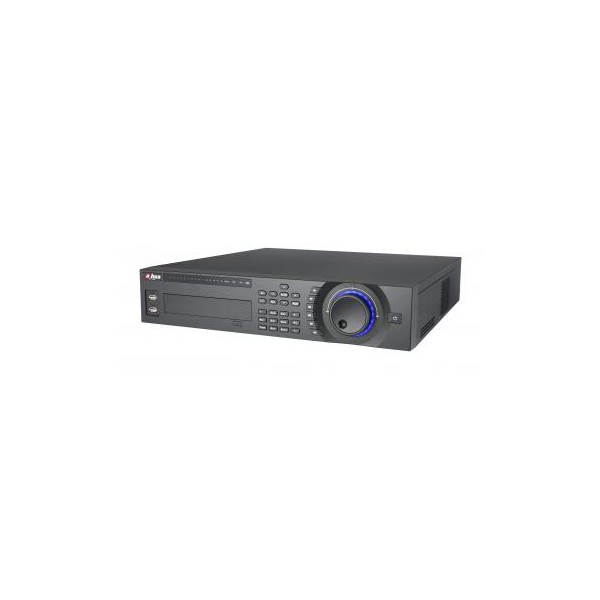

dahua NVR7816-16P 16 All Channel 2U 16 POE

Model

DH-NVR7816-16P

System

Main Processor

Dual-core embedded processor

Operating System

Embedded LINUX

Video & Audio

IP Camera Input

16 channel

Two-way Talk

1 channel Input, 1 channel Output, BNC

Display

Interface

1 HDMI, 1 VGA, 1TV

Resolution

1920×1080, 1280×1024, 1280×720, 1024×768

Display Split

1/4/8/9/16

OSD

Camera title, Time, Video loss, Camera lock, Motion detection, Recording

Recording

Compression

H.264/MJPEG

Resolution

1080P(1920×1080) / 720P(1280×720) / D1(704×576/704×480) & etc.

Record Rate

192Mbps

Bit Rate

48~ 8192kbps

Record Mode

Manual, Schedule(Regular(Continuous), MD, Alarm), Stop

Record Interval

1~120 min (default: 60 min), Pre-record: 1~30 sec,

 Post-record: 10~300 sec

Video Detection & Alarm

Trigger Events

Recording, PTZ, Tour, Alarm, Video Push,

 Email, FTP, Buzzer & Screen tips

Video Detection

Motion Detection, MD Zones: 396(22×18),

Video Loss & Camera Blank

Alarm Input

16 channel

Relay Output

6 channel

Playback & Backup

Sync Playback

1/4/9/16

Search Mode

Time/Date, Alarm, MD & Exact search

(accurate to second), Smart search

Playback Function

Play, Pause, Stop, Rewind, Fast play,

Slow play, Next file,

 Previous file, Next camera,

Previous camera,

Full screen,

Repeat, Shuffle, Backup selection,

Digital zoom

Backup Mode

USB Device/eSATA Device/Internal SATA burner/Network

Network

Ethernet

1 RJ-45 port (10/100/1000Mbps Adaptive)

PoE

16 ports (IEEE802.3af)

Network Function

HTTP, TCP/IP, IPv4/IPv6, UPNP, RTSP, UDP,

SMTP, NTP,

 DHCP, DNS, IP Filter, PPPOE, DDNS, FTP, Alarm Server,

 IP Search(Support Dahua IP camera, DVR,

NVS and etc.)

Max. User Access

128 users

Smart Phone

iPhone, iPad, Android, Windows Phone

Storage

Internal HDD

8 SATA ports (8HDDs or 6HDDs+1CD/DVD-RW),

 up to 32TB, Raid (redundancy)

External HDD

1 eSATA port

Auxiliary Interface

USB

4 ports (2 Rear), USB2.0

RS232

1 port, For PC communication & Keyboard

RS485

1 port, For PTZ control

General

Power Supply

AC 100V~240V, 50/60 Hz

Power Consumption

NVR: 75W (without HDD)
PoE: Max 15W (each)

Working Environment

-10°C~+55°C / 10%~90%RH / 86~106kpa

Dimension
(W×D×H)

2U, 440mm×460mm×89mm

Weight

6KG (without HDD)
