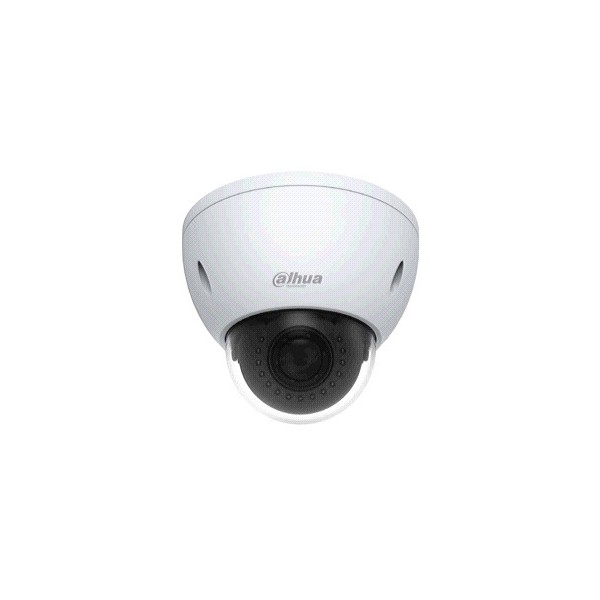

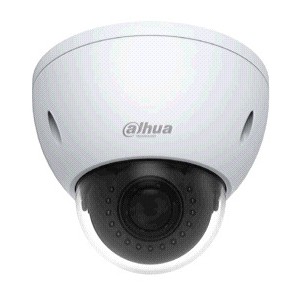

Dahua 2.4Megapixel 1080P Vandal-proof IR HDCVI Dome Camera...

Model

DH-HAC-HDBW3220E-ZH

Camera

Image Sensor

1/2.8" 2.4Megapixel CMOS

Effective Pixels

1984(H)×1225(V)

Electronic Shutter

1/3s~1/100,000s

Video Frame Rate

25/30/50/60fps@720P; 25/30fps@1080P

Synchronization

Internal

Min. Illumination

0.05Lux/F1.4, 0Lux IR on

Video Output

1-channel BNC HDCVI high definition video output /

CVBS standard definition video output

(Can switch)Tester out

Camera Features

Max. IR LEDs Length

50m, Smart IR

Day/Night

Auto(ICR) / Color / B/W

Noise Reduction

2D/3D

OSD Menu

Support

Lens

Focal Length

2.7~12mm

Angle of View

H: 93º~35º

Lens Type

Motorized / Auto Iris

Mount Type

Φ14

Auxiliary Functions

Alarm

1 channel in/out

Audio

1 channel in

Heater

Optional

General

Power Supply

AC24V±10% / DC12V±10%

Power Consumption

Max 8.4W
Max 9.6W (HDBW3220E-ZH)

Working Environment

-30°C~+60°C / Less than 95%RH (no condensation)
-40°C~+60°C / Less than 95%RH (no condensation) (HDBW3220E-ZH)

Transmission Distance

Over 500m via 75-3 coaxial cable

Ingress Protection

IP67 & IK10

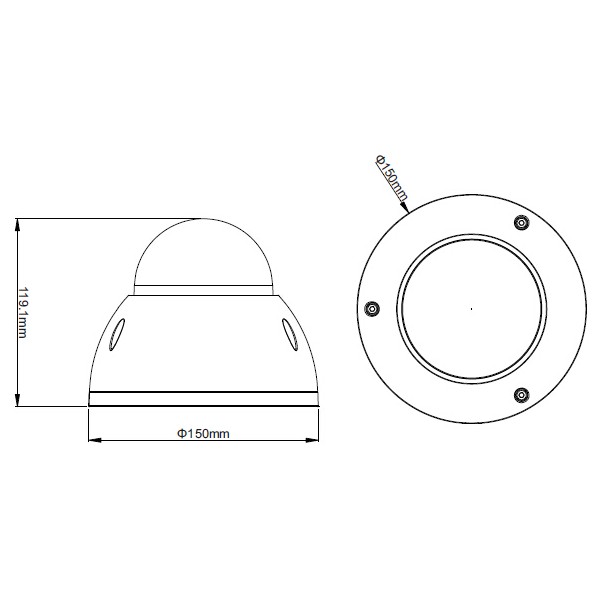

Dimensions

Φ150mm×119.1mm

Weight

0.8kg

Material

Metal
