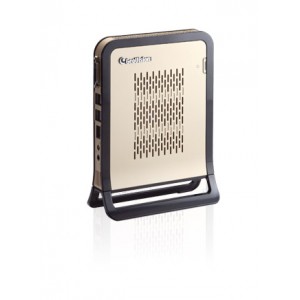

Geovision GV-NVR System Lite v1.0

Video Resolution and Frame Rate

Camera Model

Default Resolution (Dual Streams)

Max. Frame Rate (fps)

Recording and Single Live View (H.264)

Quad View (MPEG4)

GV-BX110D / GV-MFD110D / GV-BL110D / GV-PT110D

1280 x 1024

320 x 256

15

GV-BX120D / GV-BL120D /
GV-VD120D / GV-FD120D /
GV-CB120

1280 x 1024

320 x 256

30

GV-BX220D / GV-BL220D /
GV-VD220D / GV-FD220D /
GV-CB220

1920 x 1080

448 x 252

15

GV-BX320D / GV-BL320D /
GV-VD320D / GV-FD320D

2048 x 1536

320 x 240

6

GV-PTZ010D-N /
GV-SD010 / GV-SD010S NTSC

704 x 480

352 x 240

30

GV-PTZ010D-P /
GV-SD010 / GV-SD010S PAL

704 x 576

352 x 288

25

Camera Model

Default Resolution (Single Stream H.264)

Max. Frame Rate (fps)

GV-FE110 / GV-FE111

1280 x 1024

6

GV-FE420 / GV-FE421

2048 x 1944

2

Note:
1. Several resolution, aspec ratio and codec options are available for each IP camera, except GV-FE110 / GV-FE111 /
GV-FE420 / GV-FE421. But the default resolution for Quad View images (CIF) cannot be changed.
2. When connectiong GV-FE420 / GV-FE421, it is required to set the screen resolution to 1280 x 1024 or lower to get better CPU performance.

System

CPU

Intel Processor

RAM

1 GB

Storage

500 GB

OS

Microsoft Windows XP Embedded

DirectX

9.0c

Power

Output: 40W, 19V, 2.1A
Input: 100~240V, 50~60Hz

Video

Video Input

4 channels

Compression

MJPEG / MEPG4 / H.264

Live Resolution

CIF for 4 screen divisions

Recording Mode

Round the Clock / Motion Detection / Sensor Detection / Pre & Post Recording / Schedule Recording

Instant Playback

10 sec. / 30 sec. / 1 min. / 5 min.

Pre Recording

1 ~ 90 sec. (1 fps)

Water Marking

Support

Audio

Audio Input

4 channels

Compression

G.711

Connector

Ethernet

RJ-45, 10 / 100 / 1000 Mbps

DVI Output

DVI-D Output

USB 2.0

Right Side

2 ports

Left Side

4 ports

Searching and Playback

Search Method

Date / Time

Date / Time / Event Search

Selectable on the tree list and calendar

Log Search

Through the log data to find the video event / time

Backup Type

DVD+R (DL) / DVD-R (DL) / DVD+R / DVD+RW / DVD-R / DVD-RW / CD-R / CD-RW
(For backup function, you need to connect an external USB DVD/CD burner.)

Remote Client Software

Monitoring Environment

WebCam / Twin Server / Center V2 / VSM / Control Center / Remote Playback Server / Remote View / IP Multicast / GView / MSView / SSView / Remote View / 3GPP / AView / iView / iView HD

WebCam Live View

Max. 4 channels transmission

Remote Search

WebCam's Remote Playback / Remote Playback Server

System Monitoring and Recovery

Power Restoration

Power restored after AC power loss

Monitoring

Software Watchdog

Recovery

Automatic system rebuild from internal hard disk.

Sensor and Alarm

Sensor and Alarm

GV-IO Box 16 ports (Optional)

16 inputs, 16 outputs

GV-IO Box 8 ports (Optional)

8 inputs, 8 outputs

GV-IO Box 4 ports (Optional)

4 inputs, 4 outputs

Motion Detection

4 channels

Networking

Type

TCP/ IP, LAN, WAN, Internet, ISDN

Environment

Operating Temp

0 °C ~ 35 °C / 32 °F ~ 95 °F

Humidity

0% ~ 80% RH (non-condensing)

Physical

Color

Champagne gold

Dimensions (W x H x D)

153.5 x 20 x 172.5 mm / 6.04 x 0.79 x 6.79 in

Weight

650 g / 1.44 lbs

Language

Type

English / Czech / Danish / French / German / Hebrew / Hungarian / Italian / Japanese / Polish / Portuguese (Brazil) / Russian / Serbian / Spanish / Simplified Chinese / Traditional Chinese
