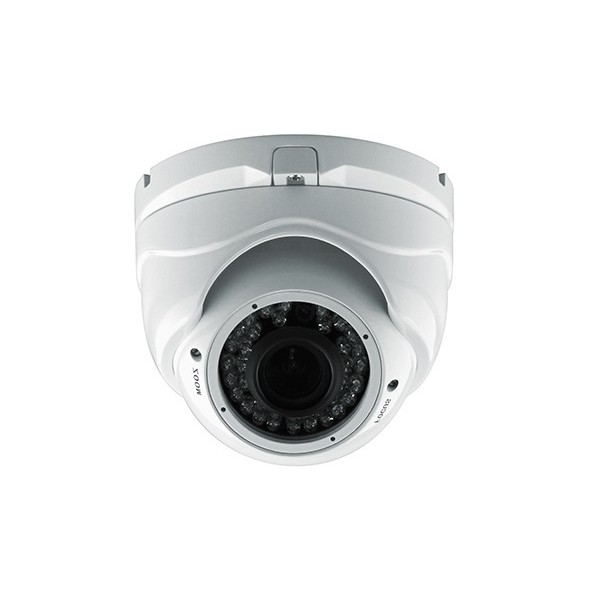

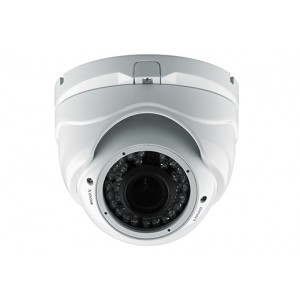

2.1MP HD TVI Color IR Dome CCTV Camera 2.8-12mm

Model NO.

LIRDVTV130

LIRDVTV200

Camera

Image Sensor

IMX238

OV2710

DSP

TP2801

FH8531

Image Resolution

960P

1080P

Effective Pixels

1.4MP, 1280x960

2.1MP, 1920x1080

TV System

PAL/NTSC

Electronic Shutter

1/25s~1/50,000s , 1/30s~1/60,000s

Sync System

Internal

Usable Illumination

0.001Lux

0.01Lux

S/N Ratio

≥50dB

Scanning System

Progressive Scan

Video Output Mode

TVI(BNC)

Lens

Focus Length

2.8-12mm

Focus Control

Manual

Lens Type

Manual

Pixels

2M Pixels

Auto Iris Support

NO

Night Vision

Infrared LED

Ø5X36PCS

Infrared Distance

30M

IR Status

Under 10 Lux by CDS

IR Power On

CDS Auto Control

Camera Features

Day/Night

Auto (ICR) / Color / B&W

Auto (ICR) / Color / B&W

OSD Menu Language

No

No

White Balance

Auto

Auto

Gain Control

Auto

Auto

Noise Reduction

3D NR

2D NR

Picture Adjustment

No

No

OSD Support

No

No

General

Vandalproof Housing

YES, Metal

Lens Angle

Adjustment

YES

Dual Voltage

NO

IR Cut Filter

YES

Heater

NO

Operation Temperature

-10C ~ +50C RH95% Max

Storage Temperature

-20C ~ +60C RH95% Max

Power Source

DC12V±10%, 500mA

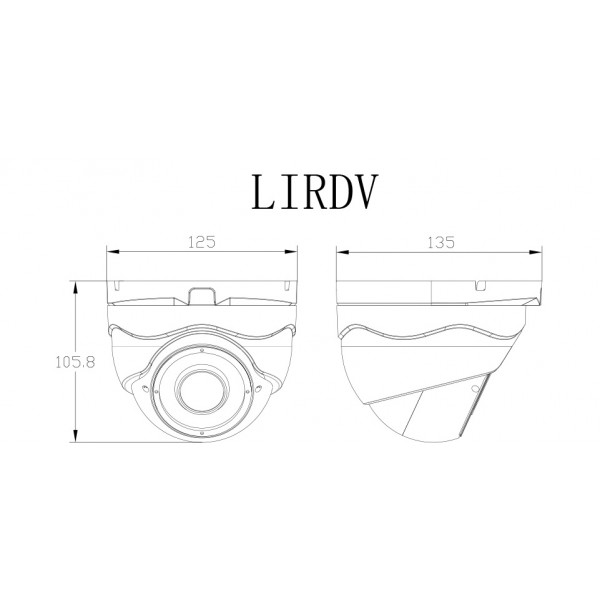

Dimension

125(W) x 105.8(H) x 135(D) mm

Weight

800g
