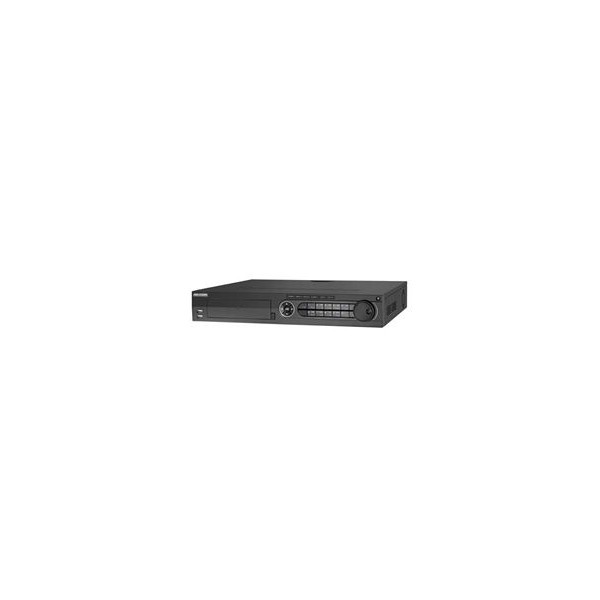

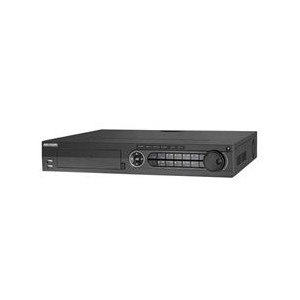

HIKVISION Turbo HD 1080P DVR 16 channel

Video Compression:

H.264

Analog and HD-TVI Video Input:

4-ch, BNC interface (1.0Vp-p, 75 Ω)

Audio Compression:

G.711u

Audio Input:

4-ch

Audio Input Interface:

RCA (2.0 Vp-p, 1 kΩ)

Two-way Audio:

1-ch (Audio In)

VGA Output:

1-ch, resolution:
1920×1080P/60Hz,1280×1024/60Hz,

1280×720/60Hz, 1024×768/60Hz

CVBS Output:

PAL: 704×576, NTSC: 704×480

HDMI Output:

1920 × 1080 / 60 Hz,1280 × 1024 / 60 Hz,

1280 × 720 / 60 Hz, 1024 × 768 / 60 Hz

Recording resolution:

Main stream: 1080P / 720P / VGA / WD1 /

4CIF / CIF;
Sub-stream: WD1(non-real-time) /

4CIF(non-real-time) / CIF / QCIF / QVGA

Frame Rate:

1/16 fps ~ Real time frame rate

Video Bit Rate:

32 Kbps-10 Mbps

Stream Type:

Video/Video&Audio

Audio Output:

2-ch RCA(Linear, 1kΩ)

Audio Bit Rate:

64kbps

Dual Stream:

Support

Playback Resolution:

1080P / 720P / VGA / WD1 / 4CIF / CIF /

QVGA / QCIF

Synchronous Playback:

16-ch

Interface Type:

4 SATA Interfaces

Capacity:

Up to 4TB capacity for each disk

e-SATA Interface:

1 eSATA interface

Network Interface:

1 RJ45 10M/100M/1000M adaptive

 Ethernet Interface

USB Interface:

3 USB2.0 interfaces

Serial Interface:

1RS-485 interface, 1 RS-232 interface,

1 RS-485 keyboard interface

Alarm Input:

16-ch

Alarm Output:

4-ch

Power Supply:

100 ~ 240VAC, 47 ~ 63HZ

Consumption:

≤ 55W

Working Temperature:

-10 °C ~ +55 °C (14 °F ~ 131 °F)

Working Humidity:

10% ~ 90%

Chassis:

19-inch rack-mounted 1.5U chassis

Dimensions:

445 × 390 × 70 mm (17.5 × 15.3 × 2.7 inch)

Weight:

≤5Kg (11.0lb)
