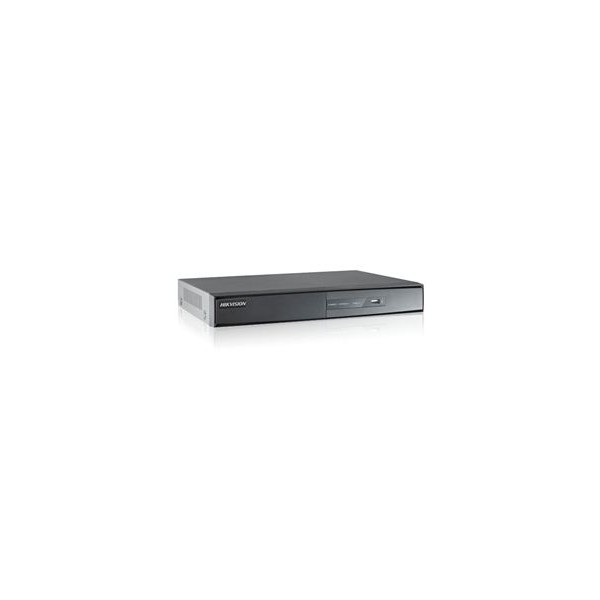

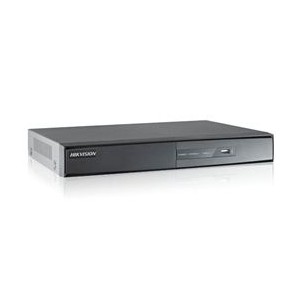

HIKVISION Turbo HD 720P DVR 16 channel

Video Compression:

H.264

Analog and HD-TVI Video Input:

16-ch, BNC interface (1.0Vp-p, 75 Ω)

Audio Compression:

G.711u

Audio Input:

1-ch

Audio Input Interface:

RCA (2.0 Vp-p, 1 kΩ)

Two-way Audio:

1-ch (Audio In)

VGA Output:

1-ch, resolution:
1920×1080P

/60Hz,1280×1024/

60Hz,1280×720/

60Hz, 1024×768/60Hz

HDMI Output:

1920 × 1080 / 60 Hz,1280 × 1024 /

60 Hz, 1280 × 720 /

60 Hz, 1024 × 768 / 60 Hz

Recording resolution:

Main stream: 1080P(non-real-time) /

720P / VGA / WD1 / 4CIF / CIF;
Sub-stream: WD1(non-real-time) /

4CIF(non-real-time) / CIF / QCIF / QVGA

Frame Rate:

1/16 fps ~ Real time frame rate

Video Bit Rate:

32 Kbps-6 Mbps

Stream Type:

Video/Video&Audio

Audio Output:

1-ch RCA(Linear, 1kΩ)

Audio Bit Rate:

64kbps

Dual Stream:

Support

Playback Resolution:

1080P / 720P / VGA / WD1 / 4CIF /

 CIF / QVGA / QCIF

Synchronous Playback:

16-ch

Interface Type:

2 SATA Interfaces

Capacity:

Up to 4TB capacity for each disk

Network Interface:

1 RJ45 10M/100M/1000M

adaptive Ethernet Interface

USB Interface:

2 USB 2.0 Interfaces

Serial Interface:

1 RS-485 interface

Power Supply:

12V DC

Consumption:

≤ 20W

Working Temperature:

-10 °C ~ +55 °C (14 °F ~ 131 °F)

Working Humidity:

10% ~ 90%

Chassis:

380mm 1U chassis

Dimensions:

380 × 290 × 48mm
(15.0 × 11.4 × 1.9 inch)

Weight:

≤ 2Kg (4.4lb)
