LED Strobe Lamp ANPR
LED Strobe Lamp Product Overview
Digital LED Strobe Lamp is high power and smart
performance digital pulse strobe light for Intelligent Traffic System
applications for LPR/ANPR. It's suitable for traffic crossing;
urban road and high way for capture number plate and...

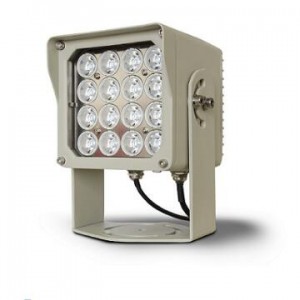

LED Strobe Lamp
Product Overview
Digital LED Strobe Lamp is high power and smart performance digital
pulse strobe light for Intelligent Traffic System applications for LPR/ANPR.
It's suitable for traffic crossing; urban road and high way for capture
number plate and speed measurement. Complied with latest professional
strobe control driver, it featured as rapidly recycling, long service life,
accurate control of strobe time and brightness, evenly high instantaneous power
output. Through precision adjustment control software to synchronize camera
and obtain clearly pictures under any
kinds of environment with less influence of human eye.
Copyright Announcement
Trademark, name of software and hardware mentioned in this user manual are
all belong to the corresponding company.
Without our company's official permission, no organization or individual are allowed to
copy or spread this user manual in any form by any means.
|
Model |
|
|
Main Processor High performance MCU |
|
|
User Interface |
RS485 port |
|
LED Type |
16pcs high power IR LED |
|
Wavelength |
850nm |
|
Center Intenity |
150lux at 20meter |
|
Beam Angle 10° (standard) |
|
|
On/Off Switch |
Environment brightness detection |
|
Strobe Interface (Default setting: Mode D) |
Mode D: Strobe frequency is 100HZ, duty cycle is adjustable and continuous working Mode H: Strobe frequency is in accordance with doubling pulse of camera, duty cycle is adjustable and continuous working (Duty cycle of Hikvision camera should be <50%) |
|
RS485 Port 1 RS485 Port, connect to PC |
|
|
Parameter Setting |
Support internal strobe light setting |
|
Power Supply |
AC165-220V |
|
Power Consumption |
Average≤20W, Peak: 40W |
|
Best Distance 10-20m,width 5-10m |
|
|
Strobe Brightness |
1-4 adjustable |
|
SYNC Interface |
Strobe trigger input |
|
Trigger Method |
Low electrical level / Switching value |
|
Lightning Protection |
Common mode 4KV, Different mode 2KV |
|
Housing Matetial |
Aluminum+toughened glass |
|
Cooling Heating dissipating housing |
|
|
Protection Level |
IP67 |
|
Working Temperature |
-40~+60C |
|
Storage Temperature |
-40~+85C |
|
N.W |
2.4kg |
|
Size |
122*125*134mm |
