High Power Outdoor IR Illuminator Waterproof 220V 8PCS IR LEDs...

High Power Outdoor IR

Illuminator Waterproof

220V 8PCS IR LEDs

940nm - 60°

Product Description

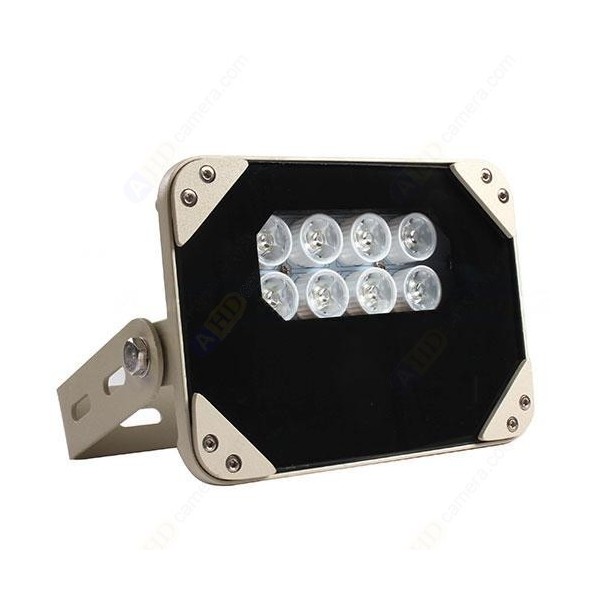

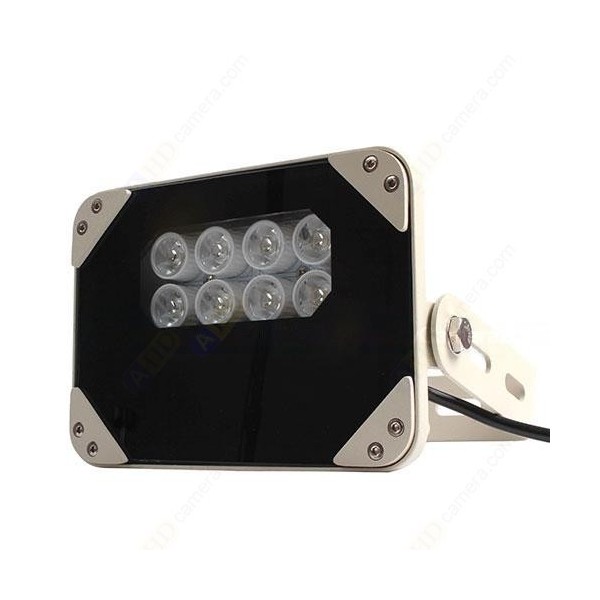

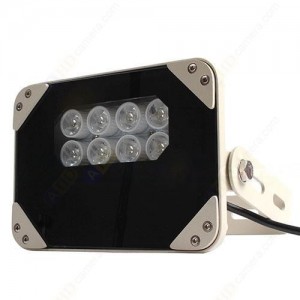

This is a high power IR LED illuminator with 8pcs IR LEDs and AC110-220V.

Stylish appearance, high waterproof and dustproof (IP66) performance;

light material and high heat conduction can help to reduce the junction temperature

and lumens depreciation, and prolong the white LEDs' service life.

Precise secondary optics design ensures higher luminous efficiency (up to 93% above)

and homogeneous faculae, and ensures achieving the best video image.

Night viewing range is from 45m to 140m.

We have different IR models optional:

45m (90deg), 60m (60deg), 80m (45deg), 100m (30deg), and 140m (15deg).

Feature:

8PCS 2W High Power IR LEDs

Wavelength: 940nm15°to 120deg beam angle

Viewing Distance:140m to 45m

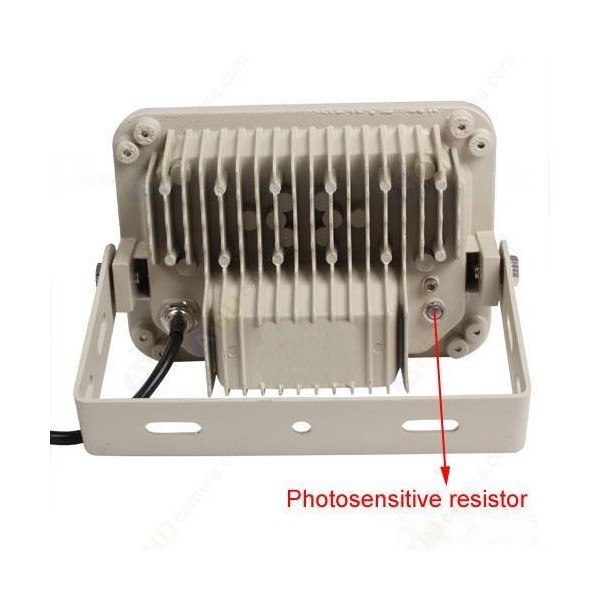

Day/night Switch: Auto

Working Voltage: AC110-220V

Power Consumption: 14W

Tempered Glass Panel

Aluminum Die Casting Housing

Mount Bracket

Working temperature:-30C to +55C

Protection Level :IP66

Dimension(without bracket):181mm(L) x 72mm(W) x 131mm(H)

Note

Screws installation package is not included.

More Information

User-Manual

Package1 x IR LED Illuminator
