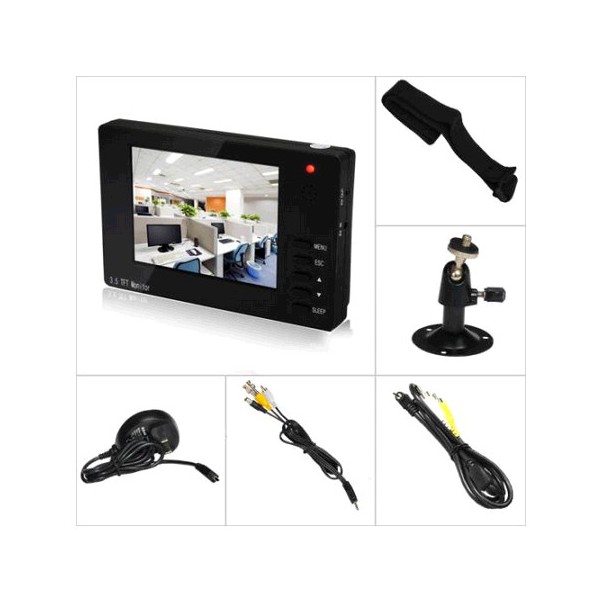

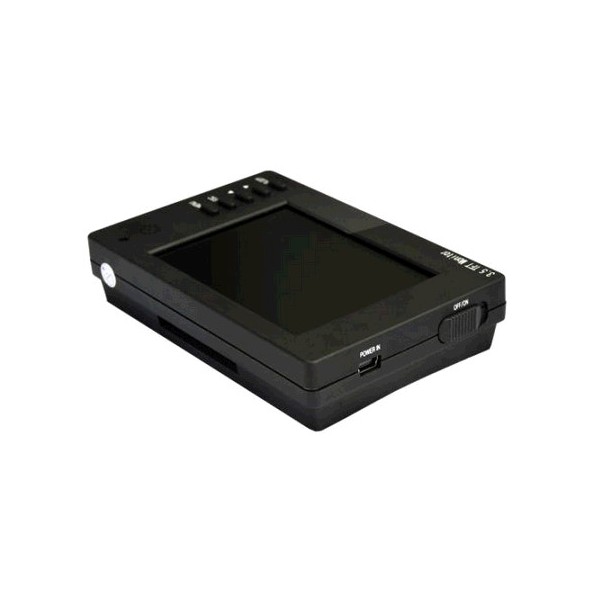

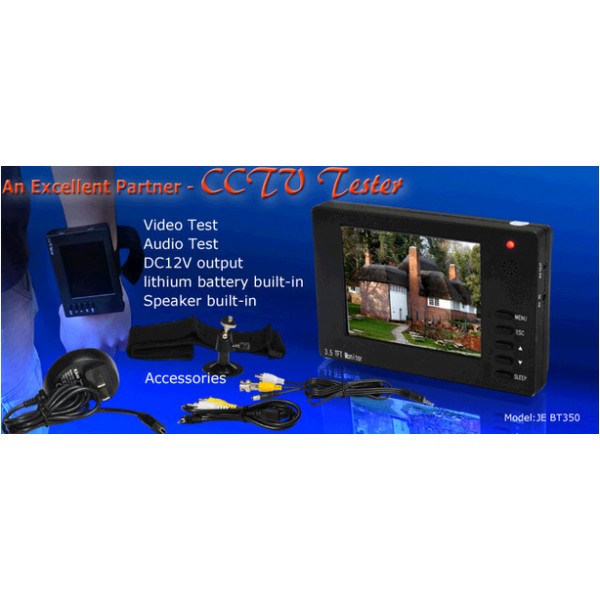

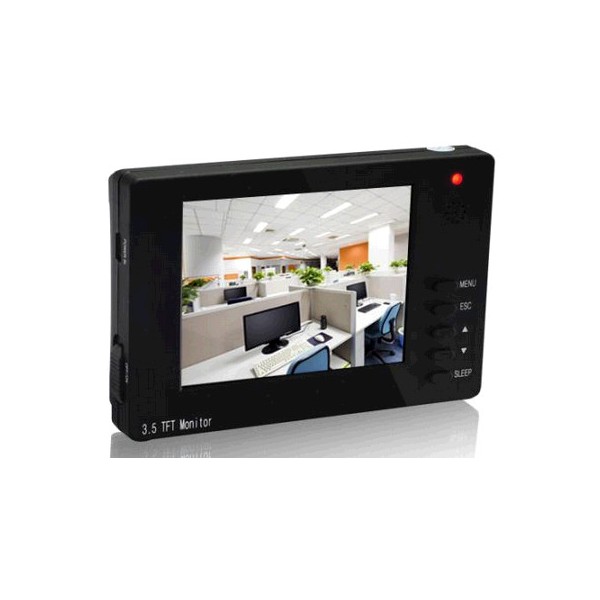

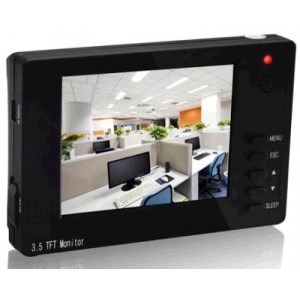

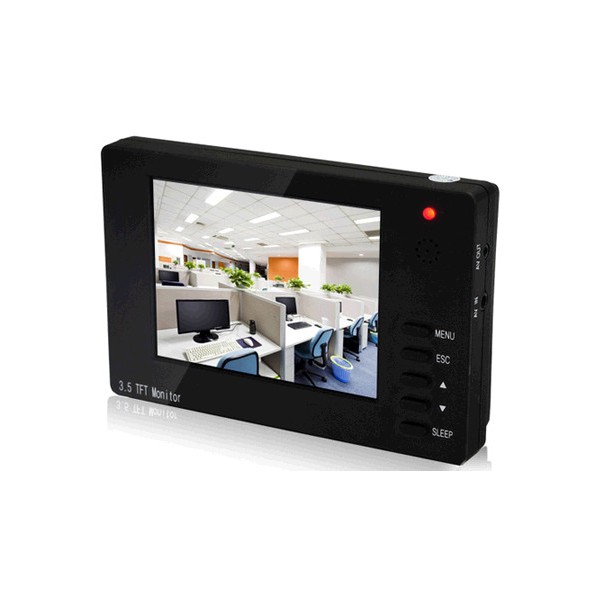

3.5" TFT Portable CCTV Tester
Specifications:
CCTV Tester 3.5" TFT-LCD, 960(H)x240(V)
Video signal and quality can be tested
Audio Test - It built in speaker
Quick Details:
Type:Digital Camera
Style:TESTER
Sensor:h264
Technology:CCTV camera tester
Special Features:Other
COLOR:black
Certification:CE/FCC/ROHs
Power supply:DC12V
Monitor size:3.5 Inch TFT-LCD Displayer
Test UTP cable:YES
Test PTZ dome camera:YES
Test Monitor: Yes:YES
Other feature:PTZ address scanning,search the ID of camera
Test Audio Signal:YES
Multi Function CCTV Tester With 3.5 inch LCD Monitor
3.5" TFT Portable CCTV Tester Specifications
|
Model |
JE-BT350 |
|
Signal Mode |
NTSC/PAL Auto Suitable |
|
Display |
3.5" TFT LCD Screen, 960x 240 Resolution |
|
Video Input |
1 X BNC 1.0Vp-p |
|
Video Output |
1 X BNC 1.0Vp-p |
|
Audio Input |
8 Ohm 1W |
|
OSD Menu |
English |
|
Power In |
DC5V 2A |
|
Power Out |
DC12V 350mA |
|
Battery |
Lithium rechargeable battery 3.7V 2200mAh |
|
Rechargeable |
5 hours rechargeable time, work for 5 hours |
|
Low consumption |
Sleeping mode available |
|
Work Temperature |
-20 to + 60 |
|
Dimension |
110 x 75 x 25mm |
