Boundary Microphone + Mikrofonforstærker Hvid

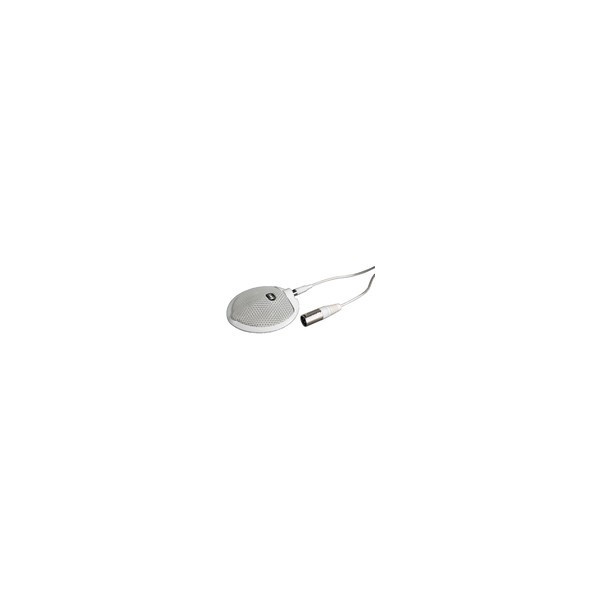

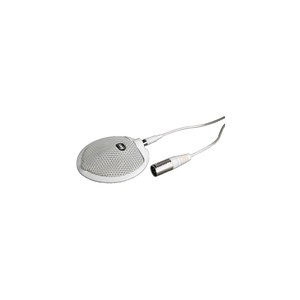

Boundary Microphone

ECM-302B/WS

Boundary microphones

Integrated electronics for the direct connection to a

phantom power supply  DC current  17-48 V

Transformer-balanced AF output

With 6 m connection cable, 3-pole mini XLR/XLR

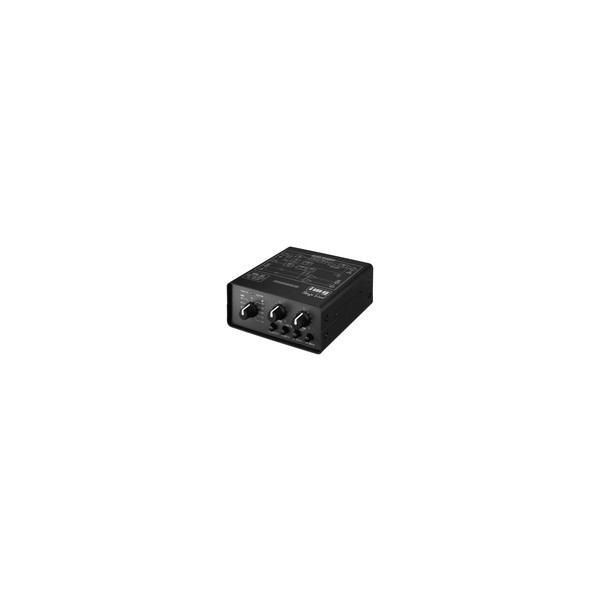

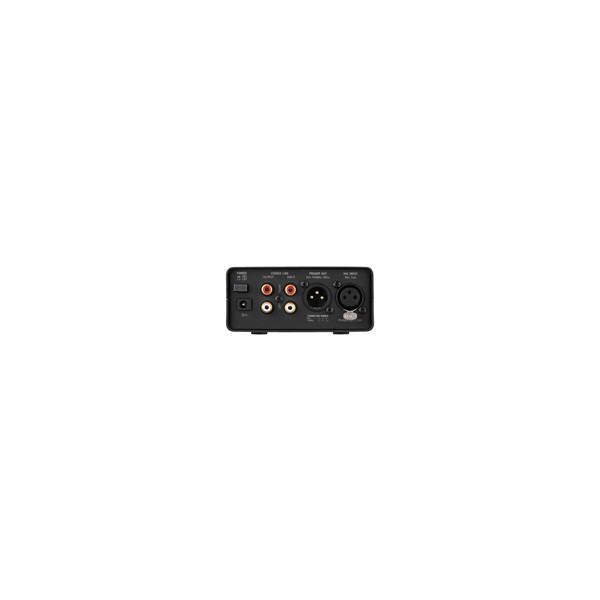

MPA-102Mikrofonforstærker

MPA-102

1-channel low-noise microphone preamplifier, for mains operation or battery operation.

1 microphone input, XLR, bal.Gain control, 11 steps, 20-70 dB

LED green/red for indicating operation/peak

Phantom power +24 V, can be switched on additionally

Switchable microphone phase

Lo cut 100 Hz, hi cut 12 kHz, 12 dB/oct., switchable

1 preamplifier output

1 stereo line input

1 stereo line outputLevel control and pan pot control for mixing the

microphone signal to the

stereo line channel
