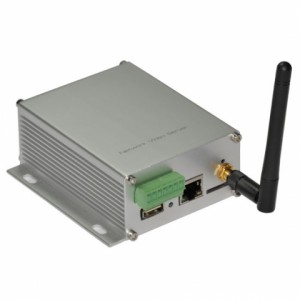

NVS-1011WR Network Video Server

Model: NVS-1011WR

Feature

Mpeg4 Compression
D1, CIF, QCIF resolution support
25/30FPS Real-time
Dual Video Streaming
RTSP/ RTP/ DHCP/ MUDP/ NTP/ SMTP/ FTP/ PPPoE/ DDNS/ UPNP/ IEEE802.11g
10/100M Adaptive Ethernet port
Wireless 2.4G 802.11g built-in
40Kbit/s ~ 4Mbit/s
Alarm snapshot email and FTP
Recorded FTP
Multi-user
Motion Detect alarm
32ch software free upgrade
4G Memory built in, support max 320G
Record mode: Motion, schedule, manual, normal
1ch Audio in/ out
RS485 bus for external controller


Specifications

Network
Video Compress MPEG4

Frame ratio Max to 25 fps (PAL) / 30 fps (NTSC)

Disoly/ Record Resolution D1, CIF

Network Ethernet, WAN, LAN

Type Of IP Address Static or Dynamic

Network Protocol RTSP/ RTP/ DHCP/ MUDP/ NTP/SMTP/ FTP/ PPPoE/ DDNS/ UPNP/ IEEE802.11g

Communication System 10M/100M Adaptive Ethernet port/ WiFi IEEE802.11g

Compression Rate 40Kbit/s ~ 4Mbit/s

Video Streaming Dual

Snapshot Email, FTP

Software
OSWindows 2000, XP, Vista

Multi-camera monitor 32 CH

Snapshot Manual

Security Permission ID, Password control. Assign different permission to different user

Record mode Normal, Manual, Schedule, Motion detection

Record memory Built in 4G, support max 320G USB hard driver

General
Power Supply DC12(1.5A)

Ambient temperature 0ºC~49ºC

Relative humidity =95% non-condensing

Power consumption 3W

Communication System RS485Bus

Baud Rate(RS485) 1200bps (19200bps), 2400bps, 4800bps, 9600bps (adjustable)

Dwell time at each position of tour 1~255 adjustable

Address range of the speed dome 1-255
