IEEE 802.3af compliance
POE Splitter 5V/9V/12V,
10/100M POE separator
Main Features
1 IEEE 802.3af compliance
2 Converts non PoE devices with Power over Ethernet support
3 Adjustable output DIP switch for 5V, 9V, and 12V adjustable output
4 Delivering power and data to equipment via a single Ethernet cable
5 Eliminates the need for a bulky power adapter and power line for your appliance
6 Compatible with Wireless Router, AP, Network Camera, Print server, Converter
7 Light weight and compact size 8 Provides interchangeable tips
Overview

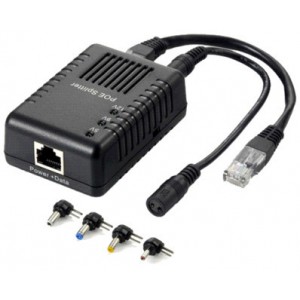

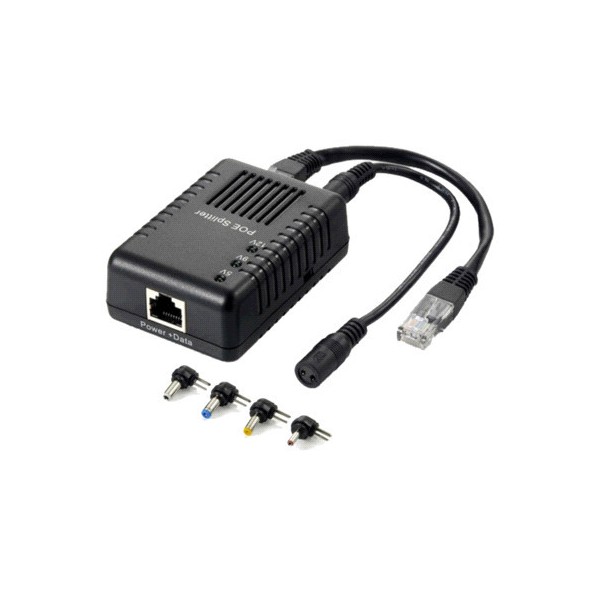

The POE112 PoE Splitter splits a networked PoE signal into separate power
and Fast Ethernet data sources. This device allows administrators to run Fast
Ethernet speed PoE cables over long distances and then split the PoE signal
into separate data and power sources in order to network non-PoE devices.
This active PoE splitter is available in the following output voltages
(5V or 9V OR 12V).Save installation and equipment cost when installing
access points, IP cameras and more in remote locations With no need
to install network devices near a power outlet.
This compact device safeguards valuable network equipment with short
circuit protection and quickly creates an integrated PoE and non PoE
network at Fast Ethernet speeds.
Specifications
|
PoE Splitter Models Specifications |
|
|
Model |
POE112 |
|
Requlatory |
802.3af |
|
Data Rate |
10/100M |
|
Input Power Voltage |
DC48V/0.3A |
|
Output Power Voltage |
5V(2A), 9V(1.1A), 12V(1A) |
|
Input Power Requirement |
1/2(+) 3/6(-) or 4/5(+) 7/8(-) |
|
Jumper Cable |
DC 2.1*5.5*9.5mm (L-300mm) |
|
Connectors |
Shielded RJ-45, EIA 568A and 568B |
|
Diagnostic LEDs |
DC Power is Green |
|
Temperature |
Operating: -10 ~ 45 °C |
|
Humidity |
10 ~ 90% (Non-Condensing) |
|
Dimension |
80 (L) x 55 (W) x 31 (H) mm |
|
Weight |
76 g |
|
Certification |
CE, FCC |
