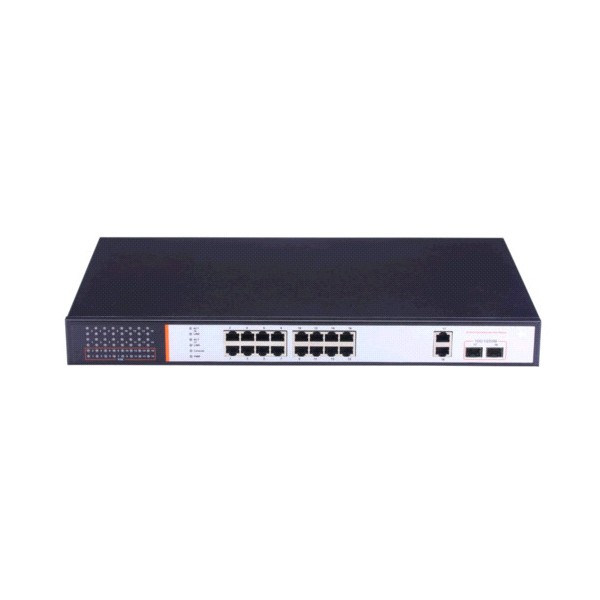

16+2 Full Gigabit Unmanaged PoE Switch PS3016G

16+2 Full Gigabit Unmanaged

PoE Switch PS3016G

Product Description

PS1016G is 16 port Gigabit unmanaged PoE Switch, which auto detect and identify

IEEE802.3 af/at standard power devices. Therefore needn’t worry about that it may

damage the private standard PoE or Non-PoE equipments. PS1016G is the best choice

for small commercial network because it use PoE deployment wireless AP and IP camera economically.

PS1016G can resolve the problem of maintenance tedious, wireless coverage,

terminal device powered and surveillance project. It can greatly save the time and cost.

Key Features

◆Support power over ethernet cable device for example wireless AP and IP camera

◆Support IEEE802.3af/at standard

◆Data and power transmission distance 100m, it can be flexible installation for

wireless AP and surveillance project

◆4.1Mbit Packet buffer size

◆10K Bytes of packet length

◆Adopted storage forward switch system

◆Support the full port loaded with IEEE802.3 af power supply；

Intelligentize power and minimum, consumptionguarantee PD requirement

◆Protect power supply circuit and back-end device

◆Automatically provide the adaptive device

◆PSE modular design can flexible select PoE mode,easy to install

◆Support IEEE 802.3、IEEE802.3u、IEEE802.3x、IEEE802.3az standard

◆Dynamic LED, provide the tips of simple working state and trouble shooting
