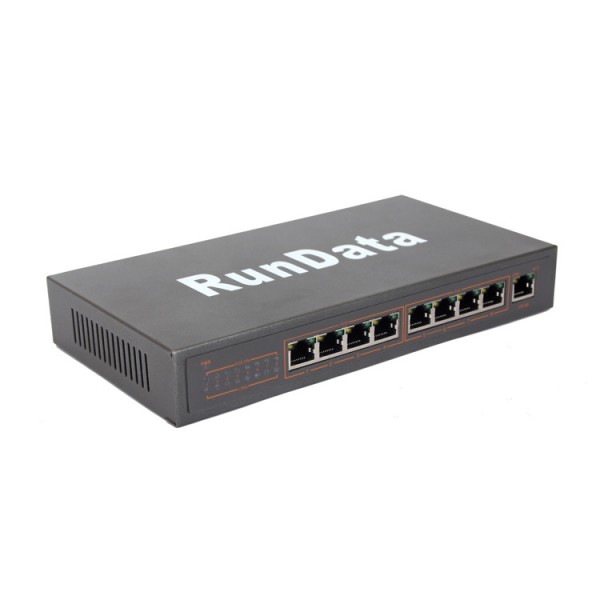

8 port 10/100Mbps PoE switch

8 port 10/100Mbps PoE switch

PS1081

Overview

The 8 port 10/100Mbps PoE switch with 48V/2A external power, provides a easier installation way for your PoE devices (IP cameras,VoIP,wireless AP,etc.).And it can detect your PoE devices according to PoE standard.So the users do not need to worry about the PoE switch will damage their PoE devices.The max transmission distance is 100 meters with Cat5 cables.Ideally,shorter cable would reduce the power degradation over the cables; with high quality cables also can reduce power loss.Plug & play design make the installation quite easy,users do not need any configuration,which make this PoE switch a very good choice for IP cameras,wireless AP,VoIP users.

Key features

• 9 10/100Mbps Auto-Negotiation RJ45 ports with 8 PoE port

• Complies with IEEE802.3af standards

•Each port support auto-negotiation-10/20, 100/200Mbps (Fast Ethernet)

•Bandwidth 1.8Gbps

•Max power for single PoE port is 15.4W

•Supports automatically detect function to protect the system when the system power is overloaded or there is non-PoE device

•LED indicators for monitoring power, link,activity and speed

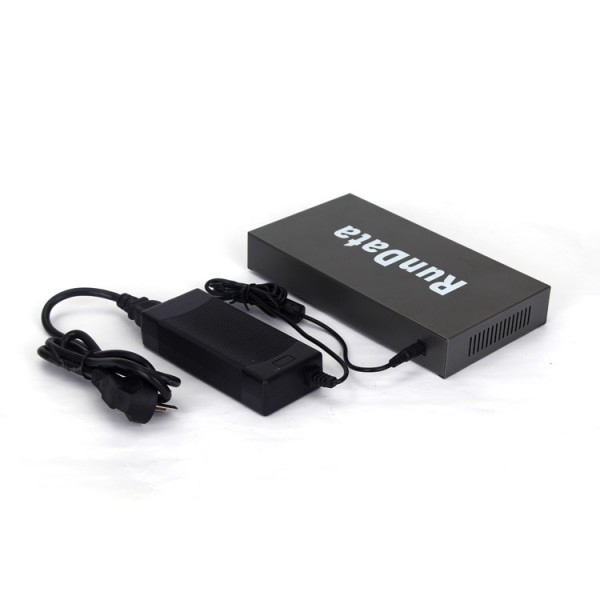

•48V/2A external power adapter,power over 12(+) 36(-)

•Supports IEEE802.3ax flow control for Full Duplex and back-pressure for Half Duplex mode



Technical Specification:
