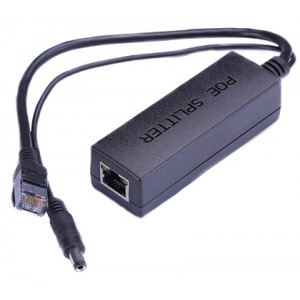

12V POE splitter for IP camera which without PoE module inside

12V POE splitter for IP camera

which without PoE module inside

PD802

Product Profile:

PD802,15.4W PoE splitter,it is an economical and practical PoE remote power

equipment base on IEEE802.3af/at standard. It can separate the power and

data via cable transmission.Proper matching use with poe switch or PSE injector

which meet standard IEEE802.3af,Provides power and data at the same time for

the terminal device does notsupport POE.PD802 Model output two tranches

voltage of 5V/12V use with the power supply equipment, It helps to expand

wireless city, Security monitoring and other poe practical place, and is not

restricted by layout of power line.

Key Features:

- Support international standard IEEE802.3 af(15.4W);

- Support 10/100Mdata transmission

PD support 37V-57V voltage transmission,Automatically detects power

supply from PSEpower supply module

- 12V/5V two kinds of power output,easy to access Poe network for

non-poe terminal

Support the isolation circuit protection,can effectively protect electrical equipment.

Support the short circuit,overvoltage protection

Specification

Model PD802

Rate 10/100M

Inputpower

DC 48V/0.35A

Outputpower

Output voltage：12V

Output current(MAX)：1.25A

POEcharacter

Support IEEE802.3 af standard（15.4W）powersupplymode

Support 1/2（+），3/6（-）；4/5（+），7/8（-）
