8 port gigabit PoE switch

8 port 10/100Mbps PoE switch

PS1080

29 andre varer i samme kategori:

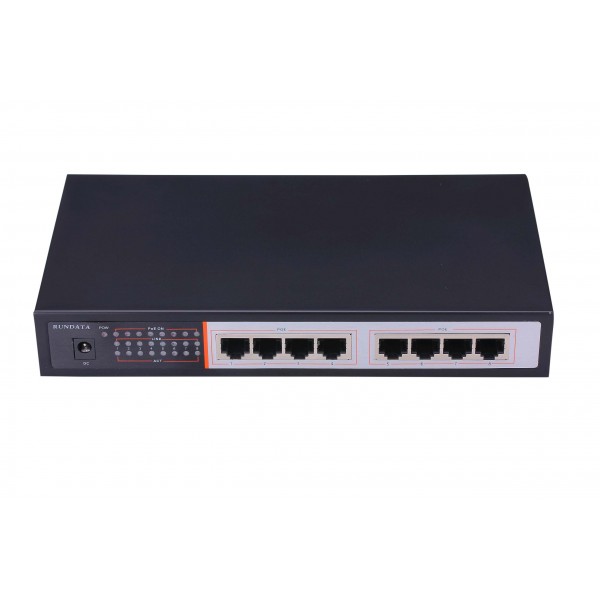

8 port gigabit PoE switch

PS1080



Product Profile

PS1080 is 8 port gigabit PoE switch, auto detection and identification IEEE802.3af standard PD device, then carry power to it. Therefore do not worry it will destroy the private standard PoE or Non-PoE equipment. PS1080 is the best choice for minitype commercial network because it  economically use PoE deployment wireless AP and IP camera . PS1080 can resolve the problem of maintenance tedious, wireless coverage, terminal device powered, surveillance project. Maximum save the cost.







- Support power over ethernet cable device for example wireless AP and IP camera

- Support IEEE802.3af  standard .

- Data and power transmission distance 100m, it can be flexible installation for

  wireless AP and surveillance project.

- Support upward port auto MDI/MDIX.

- Adopted storage forward switch system.

- Intelligentize power and minimum consumption，guarantee PD requirement.

- With power supply circuit protection function and protection back-end device safety

- Automatically provide the adaptive device

- Fanless design realize saving energe and environment protection

- No noise design can reduce the affect for environment

- PSE modular design can flexible select PoE mode

- Compact size design

- 8 10/100/1000Mbps PoE port

- Support 9126 byte jumbo frame

- Support IEEE802.1 Q VLAN and 4K VLANs

- Support  IEEE802.1x flow control

- Support saving power function when port unconnection







Network Port

·8 10/100/1000Mbps PoE RJ45port（port 1～port 8）



Transfer Rate

·10/100/1000Mbpsfull Duplex

·Network interface：10BASE-T or

100BASE-TX Ethernet  RJ-45port









Performance

·bandwidth：16Gbps(no block）



·network delay（100to100Mbps）：

maximum 20μs（using 64 byte  packet）
network delay（1000to1000Mbps）：

maximum 10μs（using 64 byte  packet）

·MAC  address capacity：1K

· Frames filter and transfer rate：

10Mport  maximum 14,800pps

100Mport maximum 148,809pps

1000M port maximum 148,8019pps





Network protocol and standard

·IEEE802.3i10BASE-T

·IEEE802.3u100BASE-TX

·IEEE802.3xFlowControl

·IEEE802.3af/atPoweroverEthernet

POE pin

1/2(+)，3/6(-)；



LEDsindicator

·Power

· LINK/ACT 、PoE





Power

•single port max 15.4W or single port max 30W

 ( depends on the PSE modular)

•Input power：120W；52V@2.3A DC output power；

（Each country use customized power plug）
· Size（LxWxH）：225mm x  121mm x 35mm

· Weight：0.8 kg
· Operating Temperature：0°~40°C（32°~113°F）

· Storage Temperature：-20℃~90℃（-4°~194°F）

· Working Humidity：10%~90% (Non-condensing)

· Storage Temperature：5%~90% (Non-condensing)
· CE Class B

· FCC Part 15，Class B

· VCCI Class B

· C-Tick
· CE/RoHS/FCC
· 1 year
