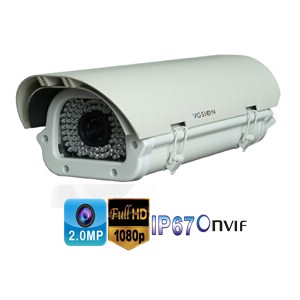

Network 1080P License plate capture Camera 12mm

 Network 1080P License plate capture Camera 12mm

Model No.VG-LPR-AM2.0MP-IR90

Ambarella ARM11

CPU1080P Video Resolution

With TF card slot

Support auto capture picture by external alarm triger

Support upload Picture to FTP server

Support Alarm input (Alarm Output is optional)

Max.Support 120 km /h Vehicle Speed

6 mm , 8mm ,12mm ,16 mm and 25 mm lens are optional

Anti Strong Light & WDR function

Support choosing different working mode according vehicle speed

With 96 PCS IR LEDs, IR distance around 70 meters

Suits for street, Road ,parking ,school,gas station and other

important place surveillance. It can capture picture when it is connected

.VG-LPR-AM2.0MP-IR90 is a professional high standard surveillance camera

which can capture Vehicle license plate number clearly and also realize road

surveillance day & night..It adopts 1/2.8” progressive scan CMOS sensor and

Ambarella ARM11 CPU with good anti-strong light and WDR function..

There are 5 working mode for different speed vehicle surveillance.

Support ONVIFprotocol to enable working with other ONVIF NVR.

When playback and pause to check vehicle number clearly

Support alarm input to realize when there is alarm triggered,

camera capture picture automatically.

Support memory card to realize save picture in card and upload picture to FTP server.

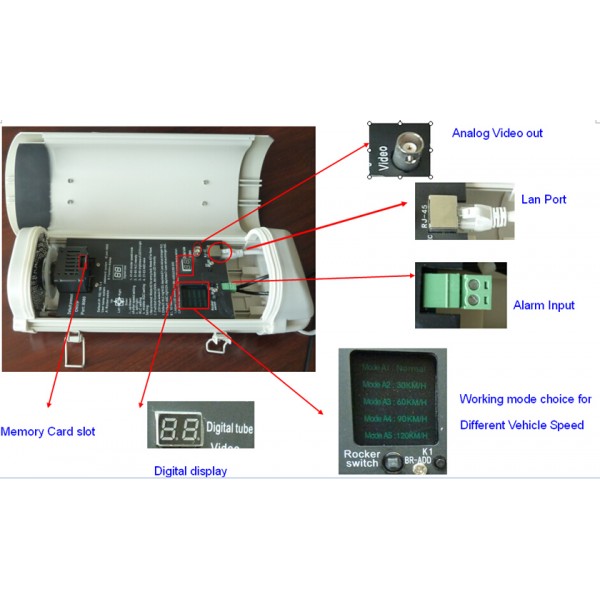

Steps:

1.Connect camera to monitor via video out port

2.Open case, and power on camera. If power on, digital display will get in red color

When the picture display on monitor, please adjust the lens to make vehicle

platewill cover 1/5 to 1/7of the monitor. At the moment, car number will be

the most clearest and monitoring range is about 5-8 meters width.
3.Using down & up switch to choose different working mode.5 working mode:

Mode A1: normal

Mode A2: 30KM/H

Mode A3: 60KM/H

Mode A4: 90 KM/H

Mode A5: 120KM/H

Mode A1: No electronic shutter and No WDR function. When vehicle is static,

using this mode.Mode A2, A3, A4 and A5 are all with electronic shutter function,

Anti-strong light function and WDRfunction. At day time, switch to normal working mode

automatically. When choose the mode, digital display will shown the present mode.

4.Choose the best working modeIf vehicle is moving, please choose A3 firstly,

if there is ghost image, then choose A4. If still ghost Image, choose A5.

If vehicle is static, please choose A1 or A2
