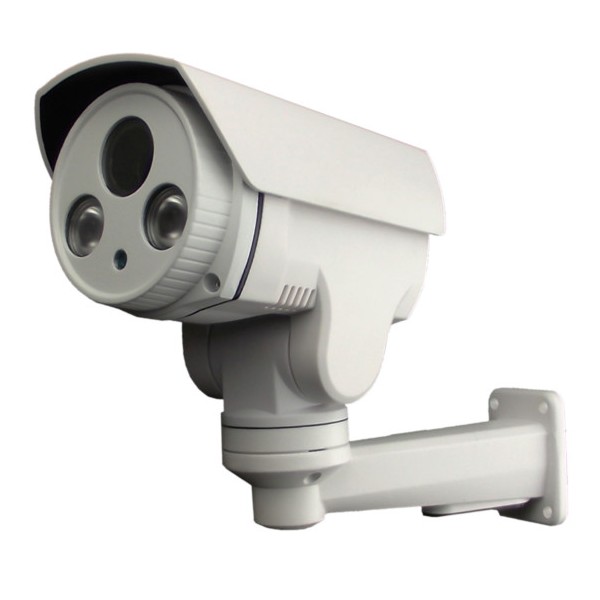

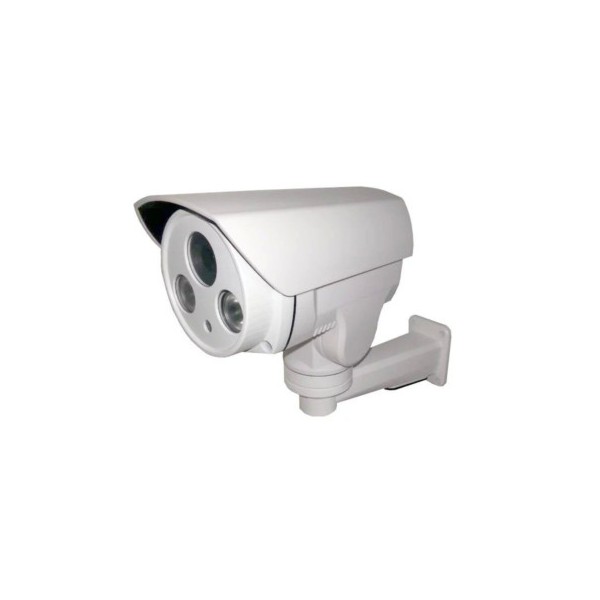

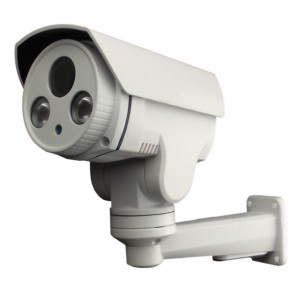

Mini Bullet PTZ IP camera POE 2.8-12mm 18x zoom

Model No.

NST-IPH5814-A

Camera Type

IP Camera

System

Embedded RTOS design

4.0 Mega Pixels 3.0MP Real Time

Effective Pixels

Main stream: 2592*1520;1920*1080;1280*720

Sub stream: 2048*1536;704*576

Frames Rates

PAL:3.0MP(2048*1536@30/25fps)

NTSC: 3.0MP(2048*1536@30/30fps)

Camera

Image Sensor

1/3" OV CMOS 4689 sensor with ICR

4.0MP(2592*1520@15fps)

DSP

Dual core   32-bit DSP

(Hi3516D)

Min. Illumination

Color   0.01Lux@F1.2

B/W   0.001 Lux@F1.2

Adjust Parameters

DWDR,BLC,DNR,AE,AGC,D&N,Mirror,Flip,etc.

Compression

H.264 / H.265 Main profile

Video

Stream

support dual stream,AVI format

Bit Rate

support 0.1M ~8Mpbs bit rate adjustable

Frame Rates

support 1~30fps adjust

Audio

Input and output

1ch    input( micphone),1ch output

t( Speaker&micphone) Optional

Compression

G.711 compression,support two-way audio

 intercom,support

audio and video synchronized   output

Alarm

Types

Motion Detection, Video Blind , Video Loss

WEB Browser

Support    WEB remote config

( IE, Safari, Google Chrome, Firefox etc.)

Smart Phone

mobile    remote    Monitoring

(iPhone,Android,Windows

Mobile,BlackBerry,Symbian)

CMS Software

Uniform CMS Software

(multiple  devices management system)

Network

Cloud P2P

www.p2pipc.net,MYEYE platform and other program

Offer SDK

Network

1*RJ45,10/100M,Support

RTSP/FTP/PPPOE/DHCP/DDNS/NTP/UPnP/SMTP

ONVIF

Support (ONVIF 2.0)

POE

Support(optional)

WIFI

N/A

20 kinds of languages such as English, Finnish, French,

Language

German,   Greek,Italian,   Japanese,   Polish,

Portuguese, Russian, Spanish, Thai,    S-Chinese,

 T-Chinese and Turkish

IR Cut Filter

Set of double light switch IR-CUT filter

Lens Mount

Motorized Zoom AutoFocus Lens 2.8 -12mm(2MP)

Infrared Luminary

2 pcs Array IR Leds

Infrared Wavelength

850 nm

Illuminate Distance

More than   40 M

Waterproof

IP 66

General

Criterion

I/O Connector

1*DC   Connector  ,1*RJ45(10/100M  Network),

1*BNC connector( CVBS,Option )

Supplied Voltage

DC12V/PoE(802.3af/820.3at)

Power Consumption

IR On: 600mA max., IR Off: Less than 200mA

Working Enviroment

-10°C~+60°C,

10%~90% ( Built in Heater being optional

added for enviroment lower than -20° )

Dimensions

200*100*85mm

Weight

2.5 kg
