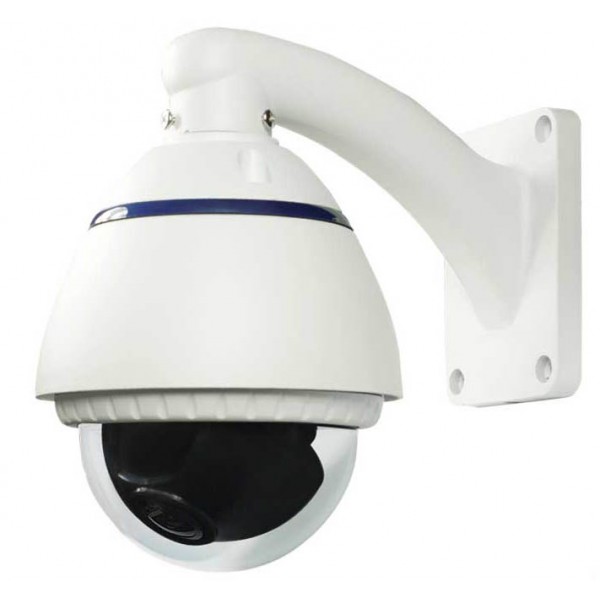

Starlight cctv Low Lux fisheye IP
180 degree viewing angle Camera
Quick Details
Place of Origin:Guangdong, China (Mainland)
Type:IP Camera
Style:Dome Camera
Sensor:CMOS
Technology:NetWork
Special Features:Waterproof / Weatherproof
Product name:185 degree viewing angle cctv camera
Resolution:1920*1080
Image Sensor:1/2.8 "Sony imx 291 CMOS sensor
Processor:high performance Ti368 DSP
Lens:without any dark corner super performance
video:H.264, Support Dual Steam
LEDs:No need IR LEDs
LPR model:DC12V/POE is optional
Certificate:CE FCC RoHs
lens: 8 million pixel military custom low light lens starlight cctv
Low Lux fisheye IP 180 degree viewing angle Camera
Product Description
The HD 180 Degree Viewing Angle fisheye CCTV Camera adopts professional
CMOS image sensor, providing good color reproduction and influent video with
H.264 format, and it can work at night with IR LEDs.
ONVIF2.4 protocol is supported, which can seamlessly
access the professional management platform and NVR device.
Without the IR light array but it also has an excellent vision in the night in order to
achieve the purpose of day and night monitoring.
Features
1)1/2.8 "Sony imx 291CMOS sensor
2)180 Degree Wide Angle Viewing CCTV Camera has high sensitivity
CMOS Sensor,Becoming wonderful in the night because of Full Color Star-light Camera
3)HD 180 degree super wide angle lens
4)H.264 video compression,dual steaming is controlled exactly and stably
5)Intelligent 2D,3D DNR,having a clear and fresh night screen
6)Standard ONVIF2.4,Convenient back-end equipment and platform access
7)Provide a unified free client to achieve video recording/playback/preview
8)Support ICR filter switching function, day and night surveillance
9)P2P is convenient remote access(Optional).
|
Product Name |
2.0 Megapixel IP 185 Degree Fish Eye Camera |
|
Model No. |
BN-IP185CDV/H |
|
Imaging Sensor |
1/2.8 "Sony imx 291 CMOS sensor |
|
Resolution |
2.0 Megapixel,1920*1080P |
|
Lens |
8 million pixel military custom low light lens |
|
IR LEDs |
/ |
|
Night Vision Distance |
/ |
|
Video processing |
H.264 video compression, dual streaming, AVI format, 0.1M~6Mpbs adjustable; |
|
Video Output |
Main stream:1920×1080,1280×960,1024×768,1280×720 |
|
Frame rate |
2.0MP 25 frame(full real time),support 1~25frame/seconds adjustable |
|
Illumination |
Color 0.1Lux,B/W0.01 Lux |
|
IR-CUT |
Support |
|
Network Interface |
RJ45 ethernet ,10/100 M adaptive;support RTSP/FTP/ PPPOE/DHCP/DDNS/NTP etc. |
|
Access Protocol |
Spoort Standard ONVIF protocol, support third-party access; Support Smart phones; support Android system, iPhone platform |
|
Motion Detection |
support motion detection,IO alarm linkage front-end storage device |
|
Remote Control |
Support uniform client and platform system application |
|
SDK |
Supply complete SDK for second development. |
|
Playback |
Support front end storage ,playback and download |
|
WEB configuration |
Support WEB configuration, OSD, real-time video transmission |
|
Power |
12VDC(±10%)/POE(optional) |
|
Operating Temperature humidity |
-10℃-50℃,20%-90% RH |
|
Dimension |
Φ132*214*220 |
|
Weight |
1.37kg |
