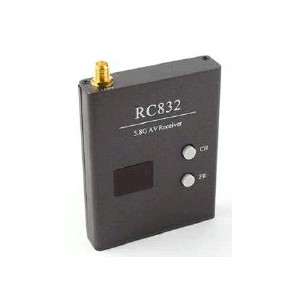

5.8GHz 32 channels receiving

5.8G 32CH Rx receiver.

32 channels:

Cover A, B, E bands and F band (Airwave band), 4 bands and all frequencies compatible;

Two switching buttons:

CH button for frequencies channels switching,

FR button for frequencies bands switching;
Two digits display: one for CH and the other for FR,

real-time positioning which frequency band and which channel received;
Power off memory: Replay the very last frequency band and channel;
Independent video and audio signal outputs;
600mW transmitter power assure 3.5KM distance in open area,

5-8 KM is available if work with the bigger gain antenna.

Specifications:
Model: RC832
Video format supported: NTSC/PAL
Antenna connection: RP-SMA, jack (module side, both TX and RX)
Power input: 7.4-16V (3S Lipo suggested)
Transmitting power: 600mw
Antenna gain: 2db
Working current: 220mA at 12V
Video bandwidth: 8M
Audio bandwidth : 6.5M
Product size: 80mm*64mm*14mm(excluding antenna)
Package size:123mm*88mm*40mm
Product Weight:146g
