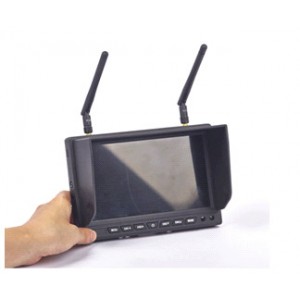

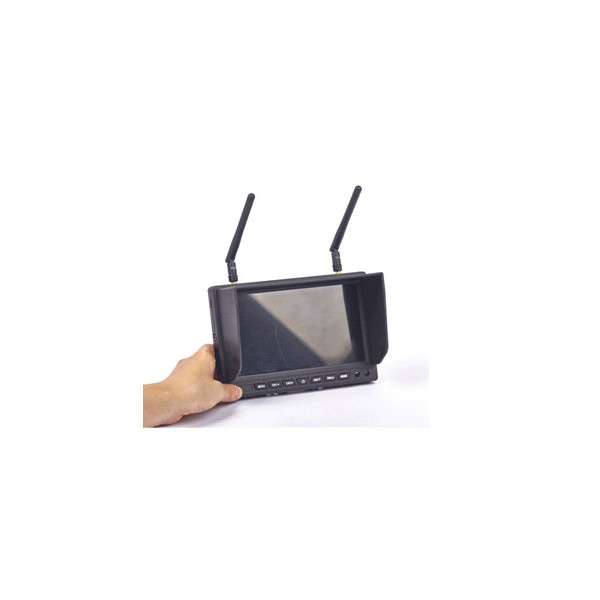

5.8Ghz FPV monitor 7 inch LCD receiver

1. Built-in Receiver Automatically for best reception Automatic Antenna Switching

2. Resolution: 800x480   7" Lcd monitor

3. Can receive 2 different frequency at the same time

4. Anti-interference,not affect by 2.4GHz R/C Radios

5. Built-in 2CH 5.8Ghz AV output and 1CH AV input

6. Small, light weight, durable Lcd monitor

7. 4 Bands and total 32 Channels

Parameters

Frequency

5665-5945Mhz ( Compatible with  Fatshark,airwave transmitter frequency)

Screen size

7inch

Screen type

TFT LCD screen/long life,LED backlight

Resolution

800*480

Brightness

450cd/m2

Contrast

500:01:00

View Angle

140/120degree (Horizontal/Vertical)

Working Voltage

DC7-12V(center positive) or 11.1V Li-battery

Power Consumption

<8W

Size

180mm x120MMx23mm

Channel Number

8 channel

Frequency Control

Built-in 5.8G Dual diversity receiver automatically for best reception

Antenna Connections

SMA and RPSMA optional

AV output and input

Built-in 2CH 5.8Ghz AV output and 1CH AV input

Languages Menu

Support 9 Languages menu selection

(English,Deutsch,Franch,Espanol,Portug,Italian,Engels,Pycck,Chinese)

Working temperature

-10°C~+65°C

Application

Airplance,Helicopter,Quadcopter,Multicopter etc
