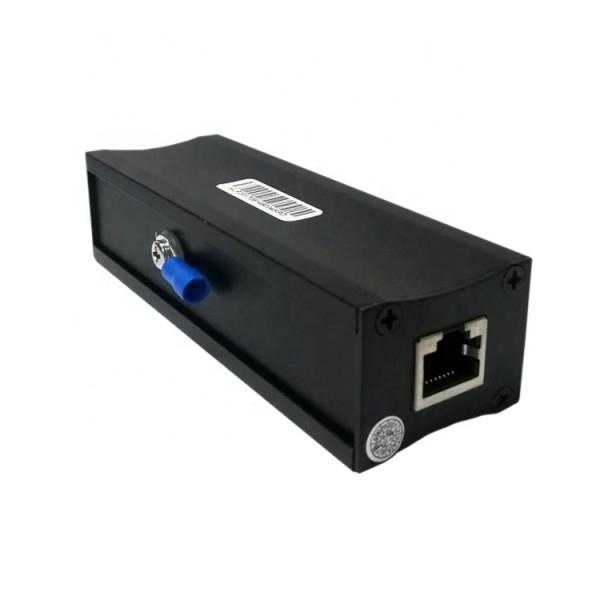

RJ45 single port rj45 surge protector spd

RJ45 single port rj45

surge protector spd

Quick Details

Product Name:

RJ45 single port rj45 surge protector spd

Operating Voltage (Un):                   5V

Nominal Discharge Current:             3KA

Voltage Protection Level( Up)::         ≤10V

Transmission rate (bit/s)::                100M

Insertion Loss::                               ≤0.2dB

Protect the port quantity:                 1

Working Environment::                    Temperature -25°C +70°C;Relative humidity<95%;

Protected Core::                              1,2,3,4,5,6,7,8 line

Dimension(mm) ::                             100*40*30
