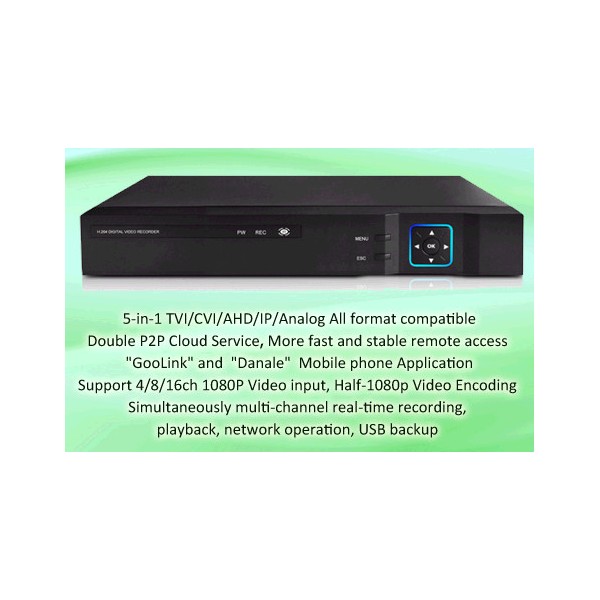

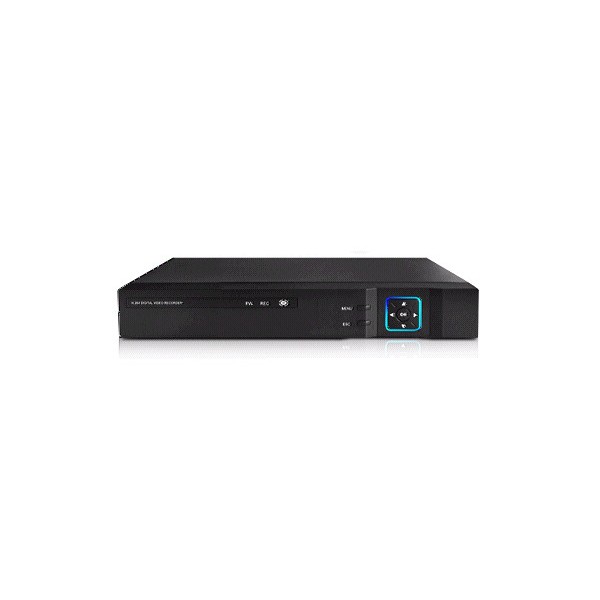

5-in-1 XDVR/DVR 16 channel optager

system

The main processor

Industrial-grade embedded chip Hi3521A

The operating system

Embedded LINUX system

video

Video standard

PAL (625 line, 50 / s); NTSC (525 lines, 60 games/s)

Decoding ability

Encoding: 16*1080N (15fps)

Decoding: 16*1080N (15fps)

Multi-mode input

HD Analog：

16*1080N HD-TVI/CVI/AHD/Analog

Hybrid: 12*1080N (HD Analog) +

 4*1080P (network);

8*1080N (HD Analog) + 8*1080P (network);

4*1080N (HD Analog) + 12*1080P

Network: 16*960P, 4*3M, 4*5M

The connection method

Double cloud

Motion detecting

192 (16 x 12) detection area Per frame ;

Can be set up multi-level sensitivity

Video playback

Recording mode

Manual > dynamic detection alarm > > time

Local playback

16ch real-time playback

Video search

Time to retrieve, calendar retrieval,

 events, retrieval, passage retrieval

Storage

Recording space

1080P 30G/day 720P 20G/day;

 960H 12~20G/day*channel;

Audio: 691.2M/day*channel

Recording Path

The local hard disk , network

backups

Network backup, USB mobile hard disk,

USB recorders

interface

Video input

8ch BNC

Video output

1ch VGA output，1ch HDMI output

（support 1920*1080P）

Audio input and output

input：2（Can be extended to 6 ch）

Audio formats intercom

G.711A        intercom：support

Alarm input

NO

Alarm output

NO

The network interface

RJ45 10M/100MAdaptive

Ethernet front-end ports

PTZ control

One RS485；

Support for multiple PTZ Protocol

The USB interface

Two USB interface

Hard disk interface

1 SATA interface     Maximum 6 TB
