Ultra Slim Thin 12V to 5V
DC-DC Step Down Converter
Quick Details
Place of Origin: Guangdong, China (Mainland)
Output Power: 1 - 50W
Output Type: Single

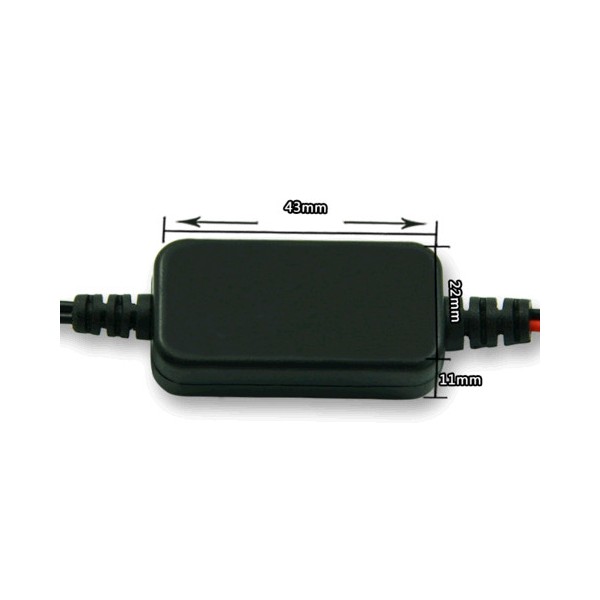

Size: 43*22*11mm
Weight: 14G
Input Voltage: 8-15V
Output Voltage: 5V
Type: DC/DC Converters
Output Frequency: 0-400HZ
Output Current: 2.5A MAX
apply for: 5v car power supply for Car Camera DVR Dash Cam
cable length: approx 12cm
Product name: 12v to 5v dc-dc converters
|
Input rated voltage |
DC 12V |
|
Input voltage range |
DC 8-15V |
|
Efficiency |
94% (half load), 91% (full load) |
|
Output voltage |
5V |
|
Output current |
2.5A MAX |
|
Output rated power |
12.5W |
|
Output peak power |
15W |
|
Voltage regulation |
< 1% |
|
Load regulation |
< 2% |
|
Working temperature |
-40°c ~+80°c ( If ambient temperature exceeds 40°c, lower power use, or to enhance heat dissipation) |
|
Module Properties |
non-isolated buck module(buck) |
|
Rectification |
synchronous rectification |
|
Waterproof rating |
IP68 |
|
Full load temperature rise: |
50°c |
|
Protection |
Over-current, Over-temperature, Short-circuit protection,Input Reverse Polarity Protection |
|
NW |
14G |
|
Product size |
43*22*11MM |
|
Attention: >Pls install according to the the label strictly |
|
