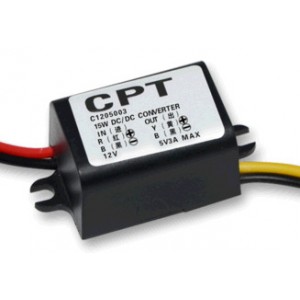

DC 12V Convert to 5V 3A 15W
DC Buck Car Power Voltage Converter
Quick Details
Place of Origin: Guangdong, China (Mainland)
Output Type: Single
Size: ABS:37*26*22mm / AL:35*24.5*20mm
Weight: ABS: 35g / AL:40g
Input Voltage: 12V DC
Output Voltage: 5V DC
Type: DC/DC Converters
Output Frequency: 0-400HZ
Output Current: 3A Max
Efficiency: >95%
Case Material: ABS Plastic / Aluminum
Working Temperature: -40℃~ 80℃
Waterproof: IP68
Certification: CE/RoHS
Product Name: convert 12v to 5v
|
Product Name |
DC Converter 12V to 5V 3A 15W Max |
|
|
Module Properties |
non-isolated boost module |
|
|
Rectification |
synchronous rectification |
|
|
Input (13-14cm) |
||
|
Input Voltage |
DC 12V |
|
|
Input Voltage Range |
DC 8-22V |
|
|
Output (13-14cm) |
||
|
Output Voltage |
DC 5V |
|
|
Output Current |
3A Max |
|
|
Output Power |
15W Max |
|
|
Conversion Efficiency |
>95% |
|
|
Voltage regulation |
±1% |
|
|
Load regulation |
± 2% |
|
|
Ripple (Full load test) |
< 150mV |
|
|
No-load current |
<100mA |
|
|
Working Temperature |
-40~80C |
|
|
Waterproof Rating |
IP68 |
|
|
Protection |
Over-current protection |
|
|
Overheat protection |
||
|
Output Short-circuit protection |
||
|
Input Reverse Polarity protection |
||
|
Application |
Electric motors, fans, Audio, Trucks, Golf Carts ,Forklifts |
|
|
Certification |
CE/RoHS |
|
|
Case Material |
ABS Plastic / Aluminum, anti-shock, anti-drop, anti-moisture, anti-dust and so on |
|
|
Product Size (L x W x H) |
ABS:37*26*22mm / AL:35*24.5*20mm |
|
|
Product Weight |
ABS: 35g / AL:40g |
|
|
Warranty |
12 months, lifetime up to 100,000 hours |
|
|
Cooling Way |
Free air convection |
|
