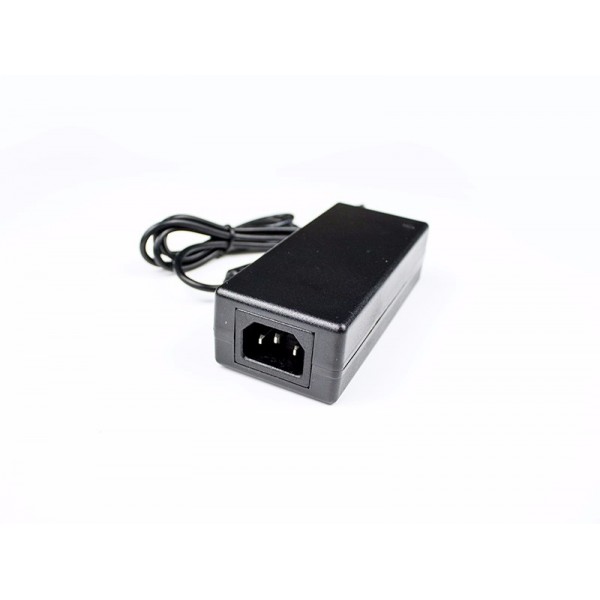

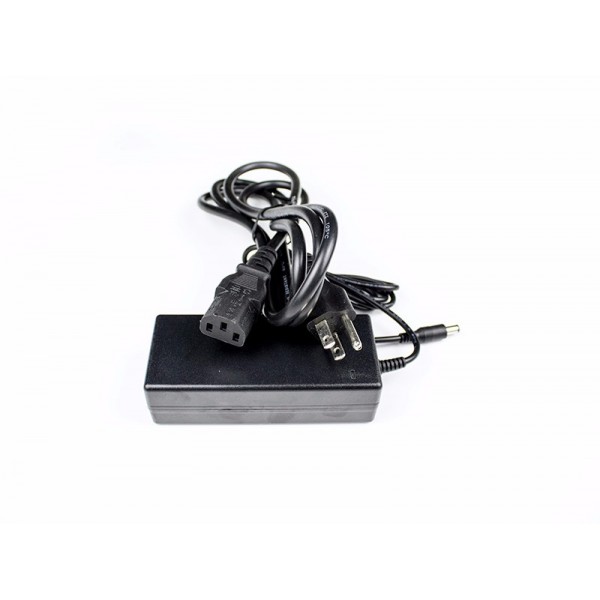

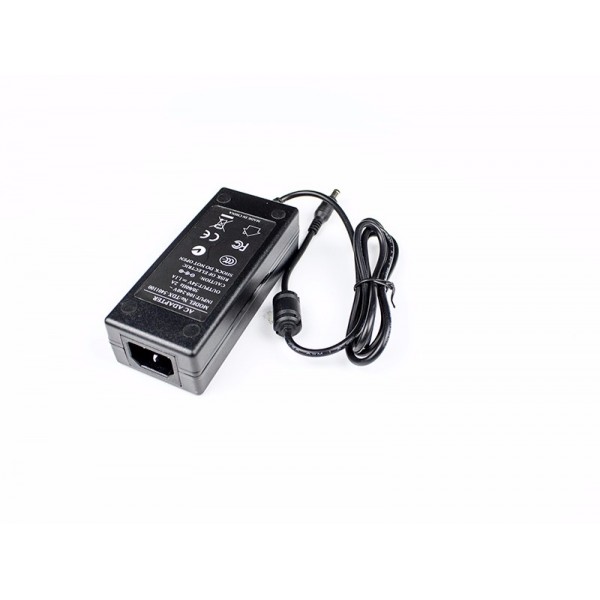

TDX-60 Desktop Power Adapter 12V 5A

Customers who bought this product also bought...

TDX-60 Desktop

Power Adapter

12V 5A

Product Features:

1.Output Voltage:DC12V.

2.Low Standby Power Consumption, High Efficiency.

Efficiency Level VI is available.

3.Universal voltage which can be used in any country.

4.Overcurrent Protection, Short-circuit Protection,Small in size

5.100% Aging test at full load,conform to EMC

60W Series
Model	TDX-1205000
Specification	TDX-1205000
Output Voltage（V）	12V
Output Current（A）	0-5A
Ripple&Noise（mVp-p）	120mV
Load Regulation	5%
Line Regulation	2%
Output Power（W）	60W
Efficiency（%）	87%
Input Voltage（V）	AC90-264V
Overcurrent Protection	120-200% Stop Output. Auto Recovery
Short-circuit Protection	Stop Output. Auto Recovery
Withstand Voltage	1500KV 10mA 60S
Operating Temperature，Operating Humidity	-10℃to+40℃ 10%RH to 90%RH
Storage Temperature，Humidity	-10℃ to +85℃ 5%RH to 85%RH
Dimension	1005034mm
Safety Standard	EN55022 FCC PART 15 GB4943 EN60950
Certifications	CE FCC CCC GS UL CB BS PSE C-TICK

Product Features：

1.Output Voltage：DC12V.

2.Low Standby Power Consumption, High Efficiency. Efficiency Level VI is available.

3.Universal voltage which can be used in any country.

4.Overcurrent Protection, Short-circuit Protection，Small in size

5.100% Aging test at full load，conform to EMC
