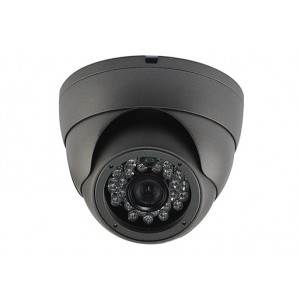

1.3MP AHD Color IR Dome CCTV Camera 3,6mm

Camera

Image Sensor

IMX238

DSP

NVP2430H

Image Resolution

PAL: 25fps@720P(1280×720);

NTSC: 30fps@720P(1280×720)

Effective Pixels

1280(H)×720(V) , 1MP

TV System

PAL/NTSC

Electronic Shutter

1/25s~1/50,000s , 1/30s~1/60,000s

Sync System

Internal

Usable Illumination

0.001Lux

S/N Ratio

≥50dB

Scanning System

Progressive Scan

Video Output Mode

AHD/CVBS (960H) (BNC)

Lens

Focus Length

3.6mm

Focus Control

Fixed

Lens Type

Fixed

Pixels

2M Pixels

Auto Iris Support

NO

Night Vision

Infrared LED

Ø5X24PCS

Infrared Distance

20M

IR Status

Under 10 Lux by CDS

IR Power On

CDS Auto Control

Camera Features

Day/Night

Auto (ICR) / Color / B&W

OSD Menu Language

EN, CN, DE, FRA, IT, ES
PL, RU, PT, NL, TR

White Balance

Auto/Manual

Gain Control

Auto

Noise Reduction

3D NR

Picture Adjustment

Yes

OSD Support

Yes

General

Vandalproof Housing

YES, Metal

Lens Angle Adjustment

YES

Dual Voltage

NO

IR Cut Filter

YES

Heater

NO

Operation

Temperature

-10C ~ +50C RH95% Max

Storage Temperature

-20C ~ +60C RH95% Max

Power Source

DC12V±10%, 500mA

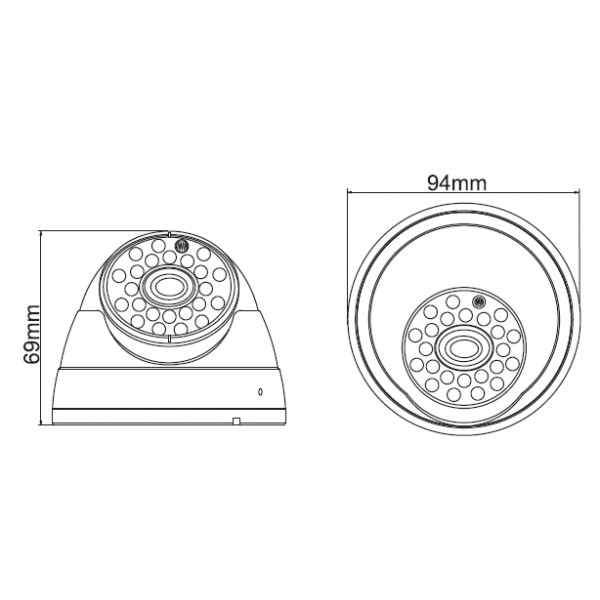

Dimension

Ø94 x 69(H)mm

Weight

0.40Kg
