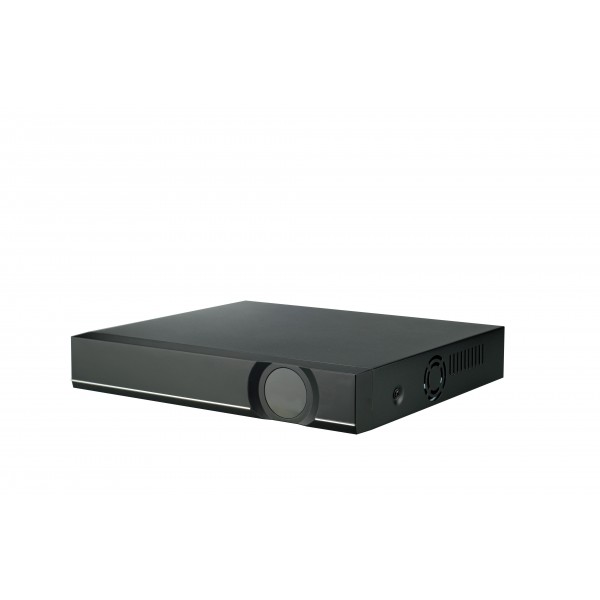

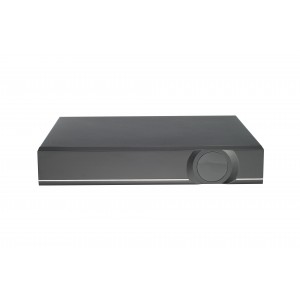

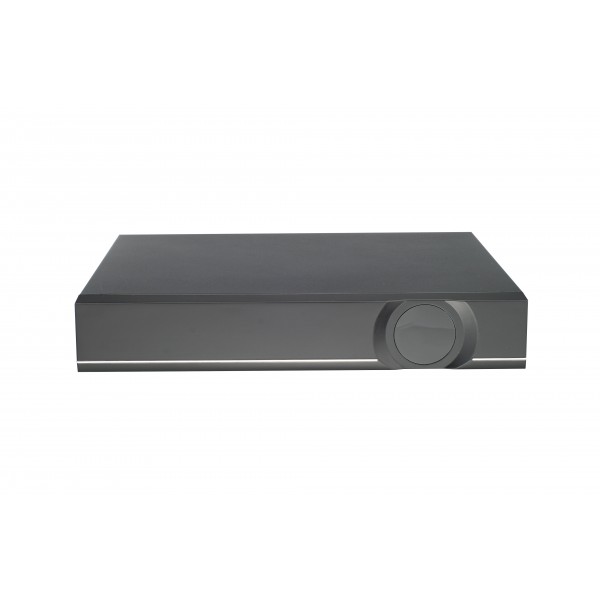

4CH 1080P AHD DVR 100fps

Model NO.

ES-A1304-H(V2.0)

System

Operating system

Embedded LINUX operating system

Display

Operation interface

16 bit real color GUI interface support mouse operation

Display

1/4CH

Video

Video standard

PAL（625 lines，50fps）；NTSC（525lines，60fps）

Compression

H.264(High Profile)

Display quality

VGA/HDMI(1920*1080P)

Playback quality

1080P/1080N/720P

Record Resolution& Frame

PAL: 1080P/1080N/720P@100fps

NTSC:1080/1080N/720P@120fps

Playback Frame

PAL: 1080P/1080N /720P@100fps

NTSC:1080P/1080N/720P@120fps

Hybrid Mode

DVR mode :4ch 1080P ;

Hybrid mode: 4ch 1080P AHD+4ch 1080P IP;

NVR mode :4ch 5MP/3MP , 8ch 1080P, 16ch 960P

Motion detection

192（16*12）detection area；can set multi-level of flexibility

Audio

Audio compression

G.711A

Record and playback

Record mode

Manual、alarm、motion detection、timing

Local playback

4CH 1080P/1080N/720P@100fps

Video search

Time、date、event、channel search

Storag

and

backup

Space occupation

Video：CIF 4~5G/day*channel，

D1 16~20G/day*channel；

Audio：691.2M/day*channel

Video storage

Local HDD 、Network

Back up mode

Network backup、USB portable HDD、

USB DVD-RW

Network

Protocol

DHCP、PPPOE、FTP、DNS、DDNS

NTP、UPNP、EMAIL etc

IE Browser

Windows IE 、Firefox 、Chrome 、Safari

CMS

Free use

Mobile Phone

Android iPhone iPad Blackberry Windows Mobile

Interface

Video input

4CH BNC

Video output

1CH VGA,1CH HDMI

Audio input

4CH RCA

Audio output

1CH RCA

Alarm input

No

Alarm output

No

Network port

RJ45 10M/100M  Ethernet port

PTZ control

1 RS485；support multi kinds of PTZ Protocol

USB port

2*USB2.0

HDD port

1 SATA（each max support 4TB）

other

Language

English、Finnish、French、German，Greek、

Italian、Japanese，Polish、Portuguese、Arabic、Farsi、

Russian、Spanish、Thai、Turkish, etc

Mouse

Yes

Remote controller

No
