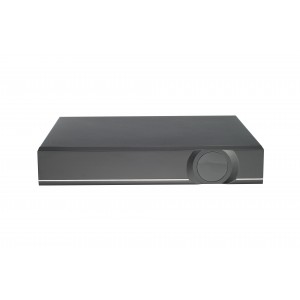

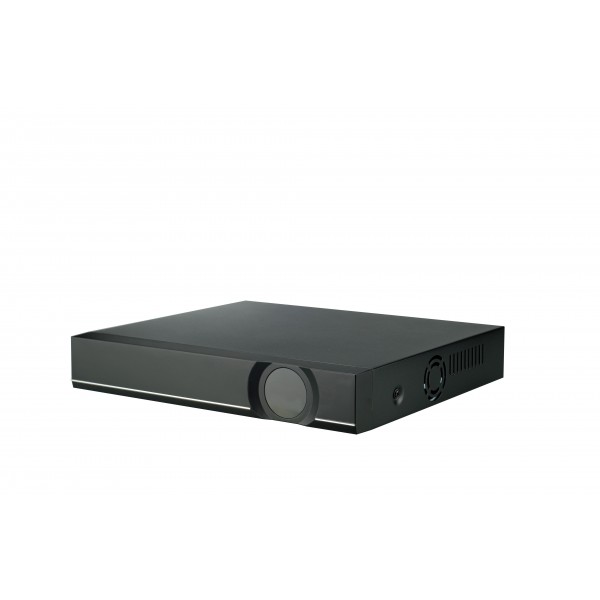

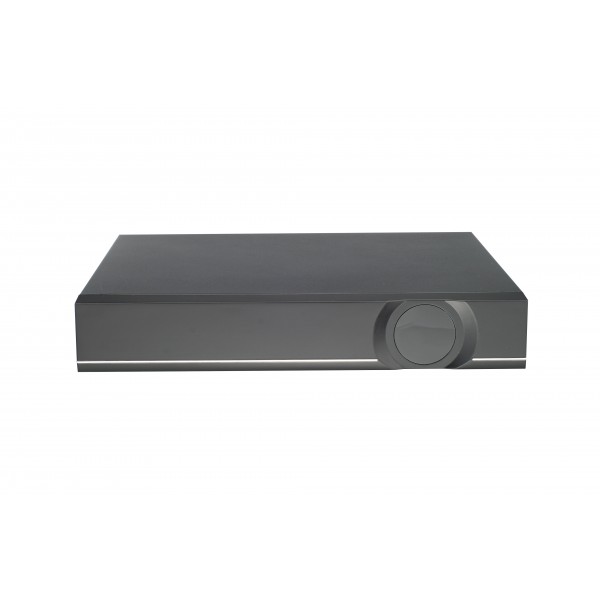

8CH 1080P AHD DVR 200fps

Model NO.

ES-A1308R-LH(V2.0)

System

Operating system

Embedded LINUX operating system

Display

Operation interface

16 bit real color GUI interface support mouse operation

Display

1/4/8CH

Video

Video standard

PAL（625 lines，50fps）；NTSC（525lines，60fps）

Compression

H.264(High Profile)

Display quality

VGA/ HDMI(1920*1080P)

Playback quality

1080P/1080N/720P

Record Resolution& Frame

PAL: 1080P@100fps,1080N/720P@200fps

NTSC:1080P@120fps,1080N/720P@240fps

Playback Frame

PAL: 1080P@50fps ,1080N/720P @200fps

NTSC:1080P@60fps,1080N/720P@240fps

Hybrid Mode

DVR mode :8ch 1080P ;Hybrid mode:

4ch 1080P AHD+4ch 1080P IP;

 NVR mode :4ch 5MP/3MP,8ch 1080P , 16ch 960P

Motion detection

192（16*12）detection area；

can set multi-level of flexibility

Audio

Audio compression

G.711A

Record and playback

Record mode

Manual、alarm、motion detection、timing

Local playback

4CH 1080P@50fps,8CH 1080N/720P@200fps

Video search

Time、date、event、channel search

Storage and back up

Space occupation

Video：CIF 4~5G/day*channel，

D1 16~20G/day*channel；

Audio：691.2M/day*channel

Video storage

Local HDD 、Network

Back up mode

Network backup、USB portable HDD、

USB DVD-RW

Network

Protocol

DHCP、PPPOE、FTP、DNS、DDNS

NTP、UPNP、EMAIL etc

IE Browser

Windows IE 、Firefox 、Chrome 、Safari

CMS

Free use

Mobile Phone

Android iPhone iPad Blackberry Windows Mobile

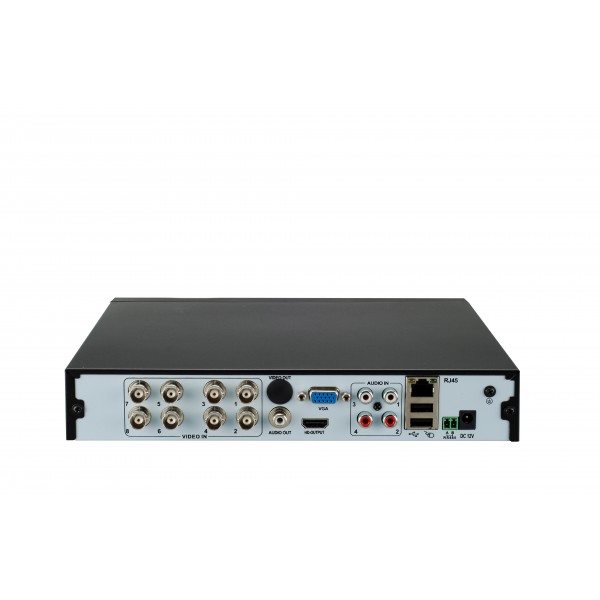

Interface

Video input

8CH BNC

Video output

1CH VGA,1CH HDMI

Audio input

1CH RCA

Audio output

1CH RCA

Alarm input

No

Alarm output

No

Network port

RJ45 10M/100M  Ethernet port

PTZ control

No

USB port

2*USB2.0

HDD port

1 SATA（each max support 4TB）

other

Language

English、Finnish、French、German，Greek、

Italian、Japanese，Polish、Portuguese、Arabic、Farsi、

Russian、Spanish、Thai、Turkish, etc

Mouse

Yes

Remote controller

Yes

Power

DC12V/2A

Dimension

258(L) x 230(W) x 42(H)
