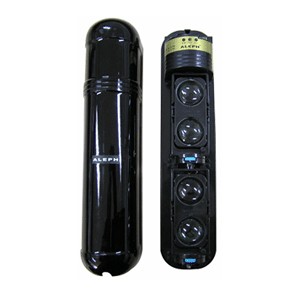

Active Infrared 4 Beam Interruption Detector 250m.

Function introduction

1.Anti-glare up to 50,000 LUX, built-in automatic adjustment strong light filtering system, avoid being affected by light or car lights

2.Sealed rain (fog), dust (worms) and other integrated structure designed to weather the bad environment can work

3.When confronted with fog or inclement weather will automatically increase the detector sensitivity (AGC circuit)

4.Up and down while adjusting the optical lens design, making adjustments faster, more convenient and more accurate

5.The modular design allows the addition of the detector and the cascading

6.Horizontal / vertical optical angle easy to adjust, easy to calibrate

Specifications

                                      CVC-H-250
Range :   Outdoor                     250M
                  Indoor                    750M
Current consumption:             85mA max
Number of beams:4 beam
Detection method:Adjustable infrared pulse
Dimensions:Refer to outline drawing
Power supply voltage:DC12V-20V
Ambient temperature:-25 ° C ~ +55 ° C
Light source:Long wavelength infrared LED four-beam
Alarm output:1C relay contact output, contact capacity DC30V/0.5A MAX
Speed Sensor:50-700msec variable
Tamper output:Contact output 1b
Other additional functions:Receiving instructions, the voltage liquid crystal display, the test terminal
