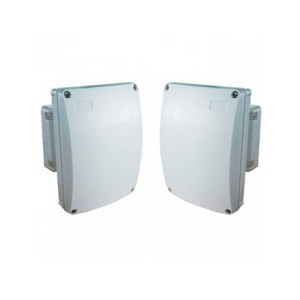

Outdoor 150Meters Microwave Perimeter Barrier

BEAM Detector MCB-150 +

PB-210D LCD DIGITAL TESTER

Specifications

1. detection range of 300M

2. impervious to heavy fog,rain, snow or harsh wether

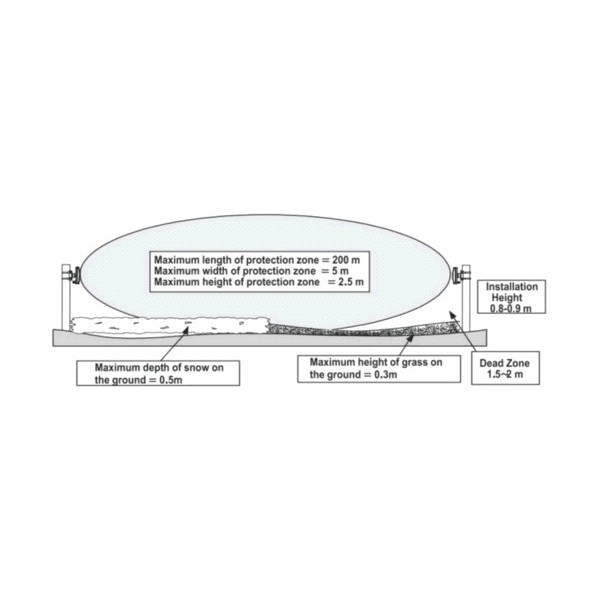

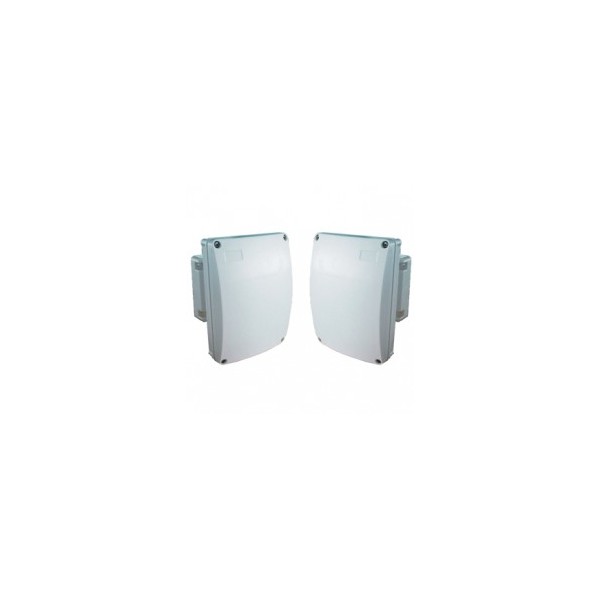

The MCB-200 is a bistation microwave detector for outdoor applications, it comprise a transmitter (T) and receiver (R). when mouted facing each other, create a protected area with length up to 200m. width of the protected area vary. according to the distance between the two units and the selected system sensitivity.

The MCB-200 is designed to protect large part of protected perimeter and can easily be installed on any type of fence or pole in order to provide a solid barrier protection and block all perimeter activities. this barrier rejects alarms from birds and small animals due to its original method of false alarm elimination.

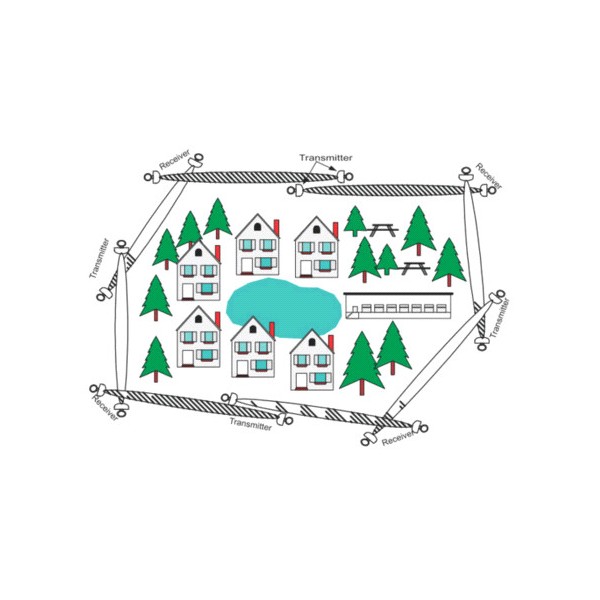

Several MCB-200 systems can be combined in order to provide a complete perimeter protection with unlimited space or shape. which is designed for continuous round the clock operation

Detection Range: 200m

Operation Temperature: -40 °C -65 °C

Power input: 10.2-30V DC

High RFI/EMI immunity

Protection force: direct sunlight, wind up to 30m/sec, snow and rain precipitation ( up to 30mm/h), small animals, ground swing, snow and glas up to 0.3m.

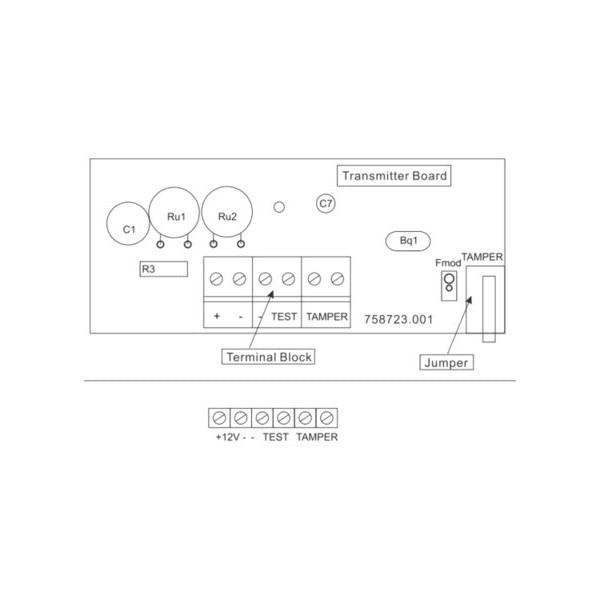

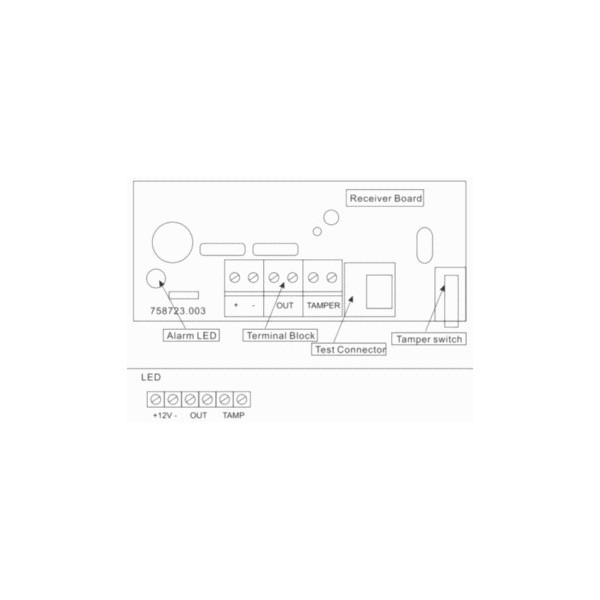

Making alarm when human intruders walking, running or crawliling with speed from 0.2 till 10m/s, applying 5-30 Volts from control unit to the terminal marked.

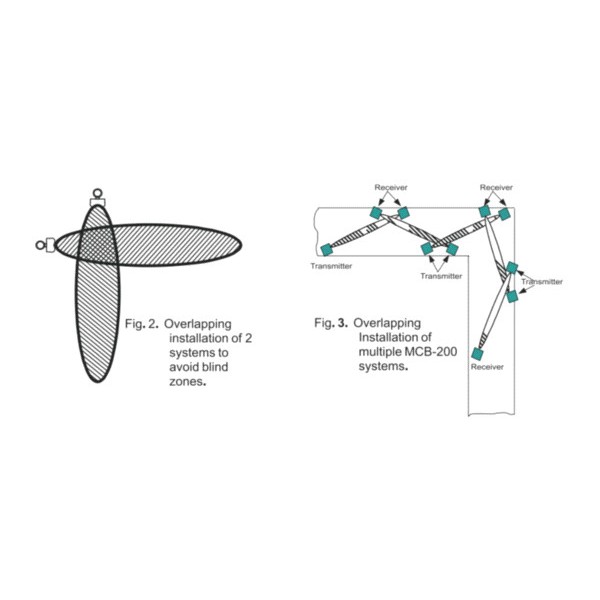

Cross Installation

In order to avoid dead zones under aerials, and to increase the protected area. it is possible to install multiple MCB-200 systems connected together with overlapping. overlap configurations are performed with the units located at the angles of protected area. the minimum overlap for sufficient coverage must be at least 1.5-2M. the optional way is to install transmitters (T) only or receivers ( R) at the point of overlap.



SPECIFICATIONS
