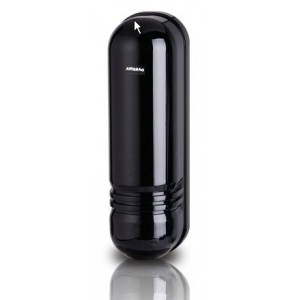

Active Infrared 2 Beam Interruption Detector 60m.

XA-60RT 60m active beam.

Specifications:

Model 60RT

Alert distance

Outdoor 60m

Indoor   180m

Number of beams

2

Detection mode

2 beams blocked simultaneous alarm

Optical source

Infrared digital pulse alarm

Response time

50~700 msec

Frequency selection

4 channels

Alarm output

NO/NC Relay; Rating:AC/DC 30V, 0.5A max.

Power supply(max)

DC 13,8~24V ac11~18V P 15W

Power consumption

65mA

Temperature & Humidity

-25 ~55 C 5%~95%RH(relative humidity)

Dimension

75mm x 75mm x 235mm each

Temper output

0~700 msec

Optical axis adjustment (H)

180 Horizontal

Optical axis adjustment (V)

20 Vertical

Material

PC Resin
