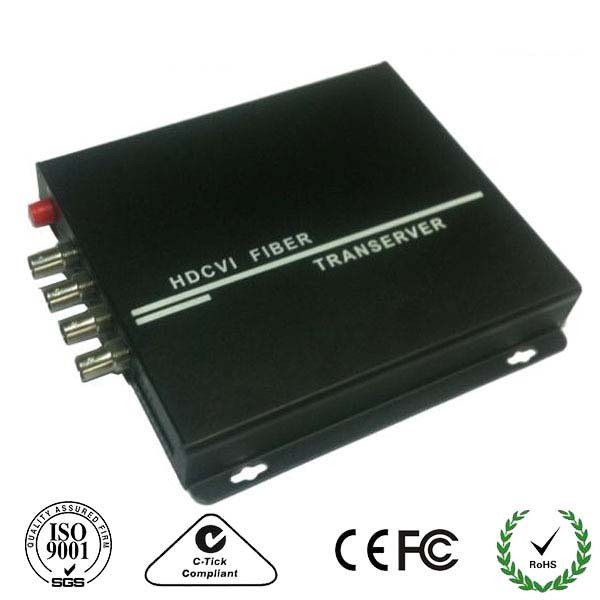

4-Ch HDCVI Video over Fiber Media Converter

7 andre varer i samme kategori:

4-Ch HDCVI Video over

Fiber Media Converter Sæt

Product Name:

Product Model:

LNK-4HDCVI-20

Highlights:

• Non-compression coding technology

• Support transmission of HDCVI signal and RS485 data simultaneously

though fiber optical cable

• Support 720p/25 720p/30 720p/50 720p/60 1080p/25 1080p/30 videos etc.

Category:

HDCVI Video over Fiber Converter
• Non-compression coding technology

• Automatically identify formats of input videos.

• Support transmission of HDCVI Video signal and controlling data

RS485 simultaneously though fiber optical cable

• DC 5V2A power supply

• Support 720p/25 720p/30 720p/50 720p/60 1080p/25 1080p/30 videos etc.

• Through 4 LED indicators to inform its functional mode

• Industrial wide range of operational temperature• Plug and play, simple installation.

Feature		Description
Optical	Fiber Type	Single mode fiber
	Fiber connection	FC
	Distance	0 – 120 KM
	Wavelength	Transmitter
		T1310nm, R1550nm.
		Receiver
		T1550nm,R1310nm
HDCVI(Transmitting)	Input level	>500mVp-p
	self-adaptionly cable equilibrium	1080p:75-5
		coaxial cable,300m
		720p:75-5 coaxial cable,500m
	Input/Output Impedance	75 Ω
	Physical Interface	BNC
HDCVI(Receiving)	Output level	1Vp-p
	Input/Output Impedance	75Ω
	Physical Interface	BNC
Data	Transmission Media	Coaxial cable
	Baud Rate	1200～9600bit/s
	Bit Error Rate	10
	Operation Mode	Half-Duplex
	Indicators	LOS、PWR、DATA、VIDEO
	Mean time between failures(MTBF)
		>100 000 hours
General	EPS	DC5V
	Power Consumption	5W
