Overview

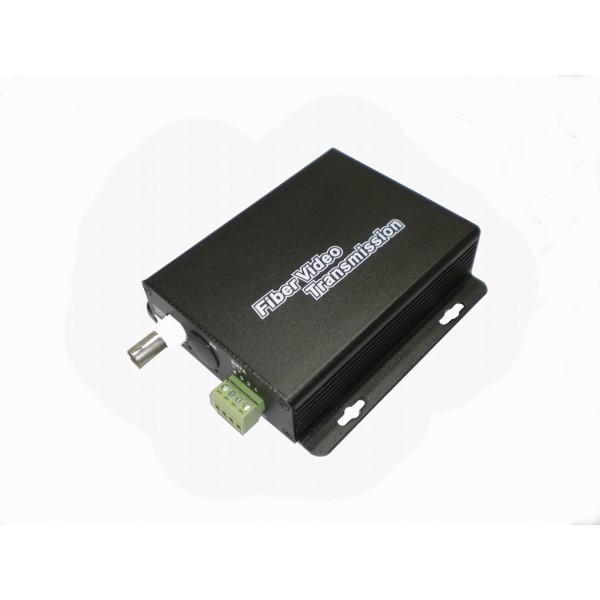

CY-9800 series fiber optical video converter is a device through fiber transmission with technology of non-compression andall 10-bit digital video correction. It supports 1-32CH analog video signals plus 1CH reverse RS485 signal in one core fiberreal-timely transmission without any distortion to 0¬100KM. Video formats of PAL, NTSC, and SECAM are compatible Automatically. Modular in design, stand-alone or rack-mounted is available to meet the client’s requirement at differentinstallation.

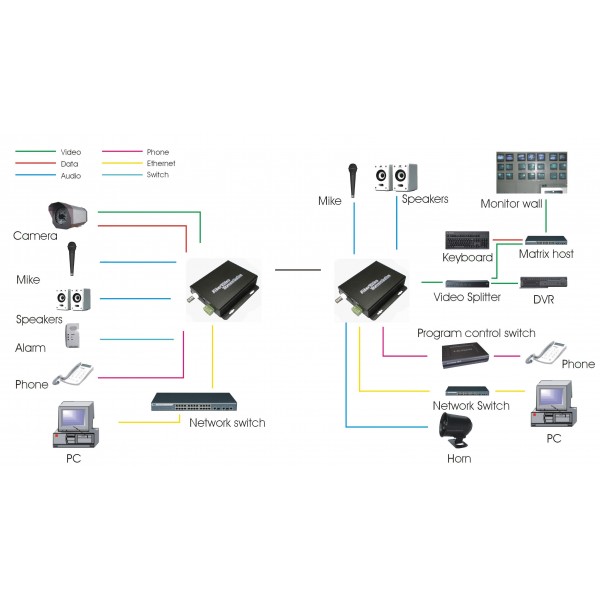

Application

1. Smart Buildings

2. Intelligent Transportation System

3. Security and Surveillance, CCTV System

4. Connection of Sub-network for Surveillance Center

5. High Way & Toll Station Surveillance

6. Industrial Closed Circuit Television Surveillance

Features

1. 10-bit digital code and non-compression video transmission;

2. Automatically adaptable to data rate, without setting;

3. Automatically compatible with video formats of PAL, NTSC, and SECAM;

4. APC circuits with constant output optical power and wide Dynamic Range;

5. No inter-modulation interference caused by analog frequency modulation, phase modulation and amplitude modulation.

6. Industrial-grade modular design ,easy to expand the functions;

7. With unique lightning surge protection design;

8. Easy for installation, no need for electrical and optical adjustment after installation;

9. TDM, ADM, and CWDM technology, especially applicable to environment unsuitable for wiring;

10. LED indicators for power supply, video, optic-link and data-loop;

11. Supply 2U Rack Mount with card-type optical converters, support of hot insert & plug.

12. CE,FCC and RoHs certificates.

13. One year warranty.
