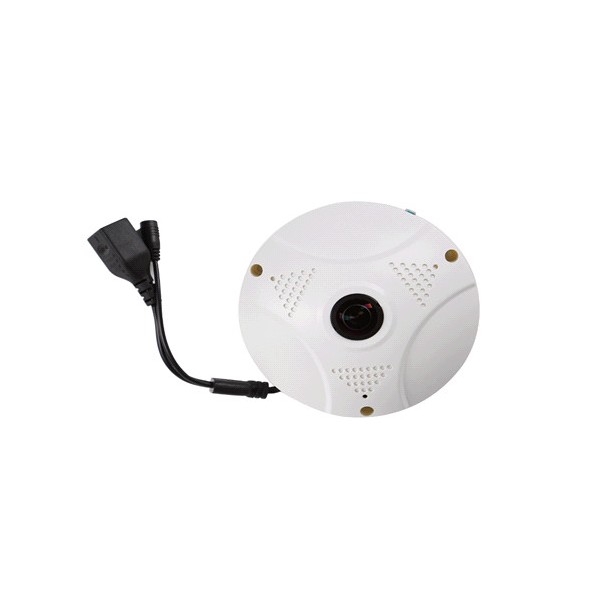

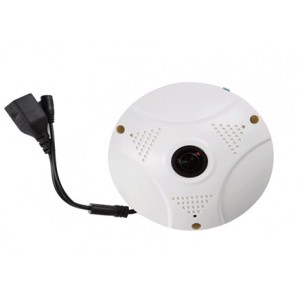

360 Degree 3MP Network Panoramic Camera POE

Features: PANORAMIC CAMERA

-3.0MP

-H.264/MJPEG  compression,EPTZ

-Support original view，panoramic view，2/3/4/9  split-view

-Support two-way audio

-Support Micro SD card local storage function

-Support POE, Onvif, WiFi

-Support Mobile phone P2P Cloud Service

-Support IR vision at night,

-Support 3  ways of  installation ,desk, wall, ceiling.

Parameter

Parameter/Model

HP-30ANK-HD

Sensor

1/2.5" Progressive Scan CMOS

Lens

Fisheye lens, f=1.2mm, F=1.8

Effective Pixels

3.0 Megapixels

Max. Resolution

2048*1536

Sensibility

0.1Lux@F2.0(Color)/0Lux@F2.0(B/W)

IR  Filter

Built-in auto switch IR Cut filter

Wide Dynamic Range

Digital WDR

Image Flip

Horizontal/Vertical

Image Adjustment

Brightness, saturation, sharpness,

contrast, BLC,AWB

Video Compression

Dual Stream H.264 / MJPEG

Bit Rate

500Kbps~8Mbps

Max. Frame Rate

20fps

Microphone

Internal

Audio Compression

G.711

Panoramic Display

360° panoramic expansion-view,

180° 2 split-view,

90° 4 split-view

Longitude and latitude correcting

view(wall mounted)

EPTZ

Digital Pan/Tilt/ Zoom

Intelligent Function

120 Regional Detection，

Detection sensibility 1~6 adjustable

Alarm Trigger

Motion Detection

Alarm Action

Alarm Record/Image Snap，

Alarm Video/Image Upload（FTP/Email）

Protocol

TCP/IP，HTTP，DHCP，DNS，RTP/RTSP，

FTP，PPPOE，SMTP，NTP

Compatibility

ONVIF 2.3

Comm. Interface

1 RJ45 10M/100M Ethernet port

Power Interface

Ø5.5-2.1mm DC Socket

Local Storage

UP TO 64G Micro SD Card

Power Supply

DC12V±10%（2A） /  POE

Power Consumption

<8W

Working condition

below 15C~+50C@humidity 10%~ 95%

Storage condition

below 40C~+75C@humidity 10%~ 95%

Audio frequency

Support two-way  audio

Operating  system

Windows 2000/XP/Vista/7

Dimension

Product：180(Diameter)*45(height)mm；

Package：190×190×90mm

Gross Weight

600g

Certificate

CE, RoHS, FCC
