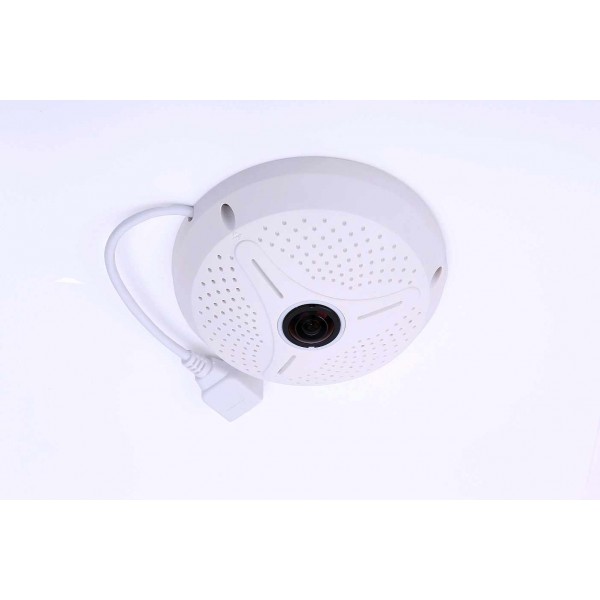

3.0MP Fish Eye Panorama Network Dome Camera
IP HD Fisheye Panoramic Camera 360 degrees.
1/3" Progressive Scan
FPC-HD is a Fish Eye Panorama Network Dome Camera featured with 3 MegaPixel resolution, superior H.264
performance and rich functions. It includes a fish-eye lens for 360°panoramic wide angle view without blind spot.
It is very suitable to view a wide area with single camera such as hallway, store, and office without the need to
install multiple cameras.
FPC-HD supports ceiling mount, wall mount applications.
FPC-HD enables you to monitor an area in high-resolution quality and without any blind spots.
FPC-HD is a discrete camera. Mounted to a ceiling, it provides 360° surveillance covering theentire area.
With just one camera, up to 4 virtual cameras can be displayed.Using the e-PTZ function, all view angles can be
adjusted by a mouse-click in a fast and intuitive way.Surveillance of an area has never been easier.
High Quality 3.0 Mega Pixel Image FPC-HD equips a 3.0 Mega Pixel sensor for capturing the high quality
videostream. With this sensor, FPC-HD is capable to capture images up to 1280*9620/2048*1536 pixels
resolution. One of the most compelling advantages of Mega Pixel surveillance systems is the ability to capture
more details in a frame and at the same time not missing any finer details that are useful for such as license plate
identification and human recognition. 3.0 Mega pixel Series offer Wide Dynamic Range
Micro SD Card Recording and 802.3af PoE Memory card slot provides local storage function for
saving image files to the specified SD card in your camera.
This function can be enabled only when you insert the well-operative
Micro SD/SDHC card to the camera.
The camera has 802.3af PoE port so you can install it away from the power
source.
IR-CUT Removable (ICR)COOP FPC-HD equips with ICR. IR-CUT Removable is a gear which will adjust the IR
filter foradapting the light condition in the environment.
With ICR, FPC-HD can be used for most of indoorlocations Support
Built-in Microphone and FPC-HD has the built-in microphone and speaker,
so a user can use two-way audio function without external microphone and speaker.
|
Specification |
HP-30FPC-HD |
|
Optoelectronic |
|
|
Lens |
Fisheye lens, f=1.16mm, F=2.0 |
|
Field of View |
185° |
|
Iris |
Fixed |
|
Sensor |
1/3.2" Progressive Scan CMOS |
|
Effective Pixels |
About 3.0 megapixels |
|
Sensibility |
0.5Lux@F2.0(Color)/0.05Lux@F2.0(B/W) |
|
Day/Night |
Auto switch IR Cut Filter |
|
Image |
|
|
Image Flip |
Horizontal/Vertical |
|
Image Adjustment |
Brightness, saturation, sharpness, contrast, BLC,AWB |
|
Max. Resolution |
2048X1536 |
|
Video Compression |
Dual Stream H.264 |
|
Bit Rate |
500Kbps~6Mbps |
|
Max. Frame Rate |
15fps |
|
Audio |
|
|
Microphone |
Internal |
|
Speaker |
Internal 1W |
|
Audio Compression |
G.711 |
|
Pano Function |
|
|
Panoramic Display |

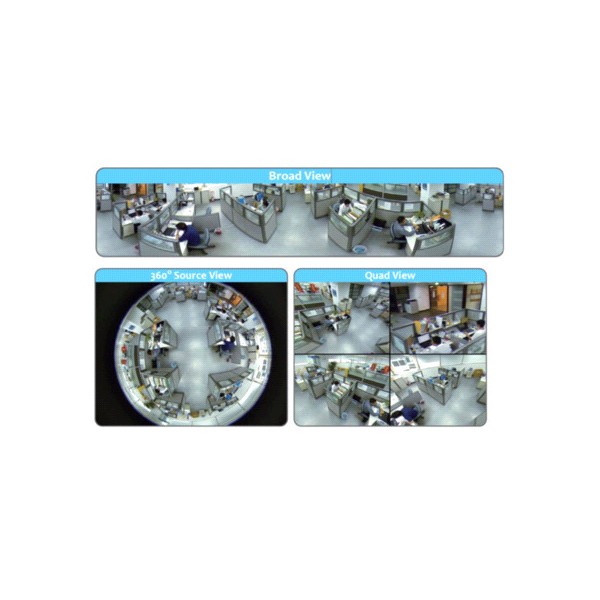

360° panoramic expansion-view, 180° 2 split-view, 90° 4 split-view Longitude and latitude correcting view(wall mounted) |
|
DPTZ |
Digital Pan/Tilt/ Zoom |
|
Intelligent Function |
|
|
Intelligent Function |
4x3 Regional Detection, Detection sensibility 1~100 adjustable |
|
Alarm Function |
|
|
Alarm Trigger |
Motion Detection |
|
Alarm Action |
Alarm Record/Image Snap, Alarm Video/Image Upload(FTP/Email) |
|
Network |
|
|
Protocol |
TCP/IP,HTTP,DHCP,DNS,RTP/RTSP, FTP,PPPOE,SMTP,NTP |
|
Compatibility |
ONVIF 2.0 |
|
Interface |
|
|
Comm. Interface |
1 RJ45 10M/100M Ethernet port |
|
Power Interface |
Ø5.5-2.1mm DC Socket |
|
Local Storage |
UP TO 128G TF Card |
|
General |
|
|
Power Supply |
DC12V±10%(1A) / POE |
|
Power Consumption |
<6W |
|
Working condition |
-15℃~+50℃@humidity 10%~ 95% |
|
Storage Condition |
-40℃~+75℃@humidity 10%~ 95% |
|
EMC |
CE,FCC |
|
Housing |
Plastic(White) |
|
Protection Grade |
IP50 |
|
Dimension |
Product:Φ148×53mm;Package:260×215×103mm |
|
Weight |
N.W:0.5kg;G.W:1 kg |
|
Optional function |
WIFI,VANDALPROOF IK10 |
